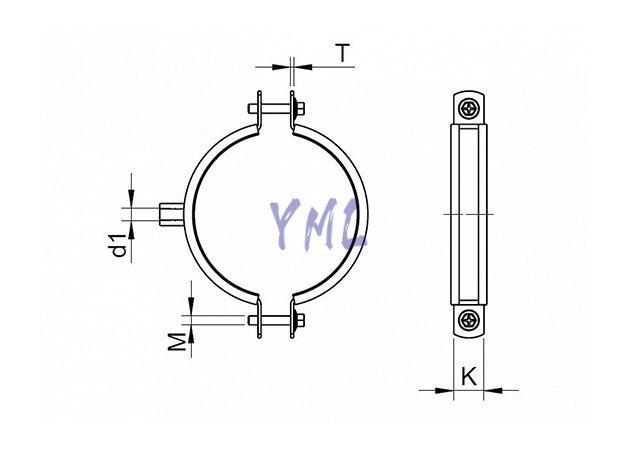

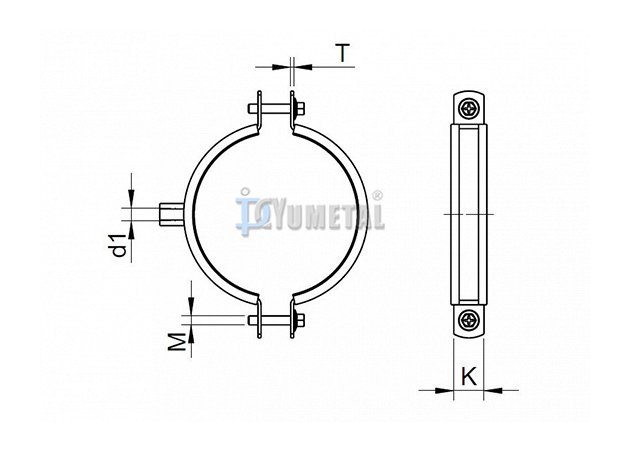

| Art No. | range | Size | KxT | bolt | d1 | Weight | |
| mm | inch | mm | mm | mm | mm | kg/100pcs | |
| HC06-12 | 12-16 | 1/4” | 15 | 20x1,5 | M6x20 | M8 | 4,8 |
| HC06-15 | 15-19 | 3/8” | 18 | 20x1,5 | M6x20 | M8 | 4,8 |
| HC06-20 | 20-24 | 1/2” | 22 | 20x1,5 | M6x20 | M8 | 5,1 |
| HC06-26 | 26-30 | 3/4” | 28 | 20x1,5 | M6x20 | M8 | 5,9 |
| HC06-32 | 32-36 | 1” | 35 | 20x1,5 | M6x20 | M8 | 6,4 |
| HC06-40 | 40-44 | 1 1/4” | 42 | 20x1,5 | M6x20 | M8 | 7,2 |
| HC06-46 | 46-50 | 1 1/2” | 48 | 20x1,5 | M6x20 | M8 | 8,0 |
| HC06-52 | 52-56 | -- | 54 | 20x1,5 | M6x20 | M8/10 | 8,8 |
| HC06-60 | 60-64 | 2” | 60 | 20x1,5 | M6x20 | M8/10 | 9,2 |
| HC06-68 | 68-72 | -- | 70 | 20x2,0 | M6x20 | M8/10 | 12,1 |
| HC06-72 | 72-78 | 2 1/2” | 75 | 20x2,0 | M6x30 | M8/10 | 12,5 |
| HC06-80 | 80-86 | -- | 85 | 20x2,0 | M6x30 | M8/10 | 13,5 |
| HC06-88 | 88-94 | 3“ | 90 | 20x2,0 | M6x30 | M8/10 | 14,5 |
| HC06-98 | 98-104 | -- | 100 | 20x2,0 | M6x30 | M8/10 | 15,5 |
| HC06-112 | 112-118 | 4” | 115 | 20x2,0 | M6x30 | M8/10 | 17,2 |
| HC06-122 | 122-130 | -- | 125 | 25x2,5 | M6x30 | M8/10 | 29,0 |
| HC06-134 | 134-142 | 5” | 140 | 25x2,5 | M6x30 | M8/10 | 31,1 |
| HC06-146 | 146-154 | -- | 150 | 25x2,5 | M6x30 | M8/10 | 33,4 |
| HC06-160 | 160-168 | 6” | 165 | 25x2,5 | M6x30 | M8/10 | 36,2 |
| HC06-202 | 202-212 | 8” | 210 | 25x2,5 | M6x30 | M8/10 | 42,0 |
