SEB04

SEB-04

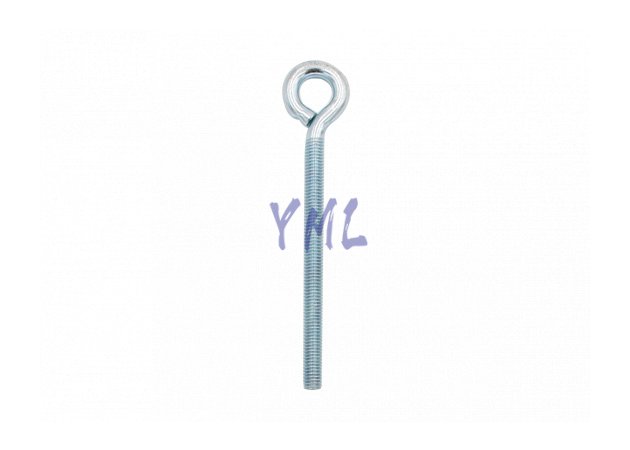

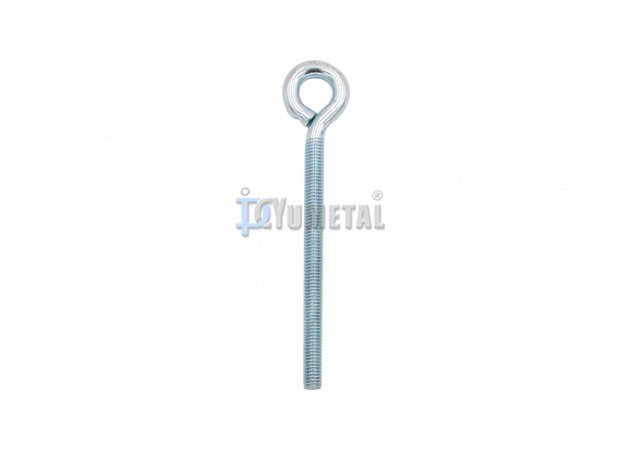

SEB04 Eye With Metric Thread

Inquiry Now Add to cart

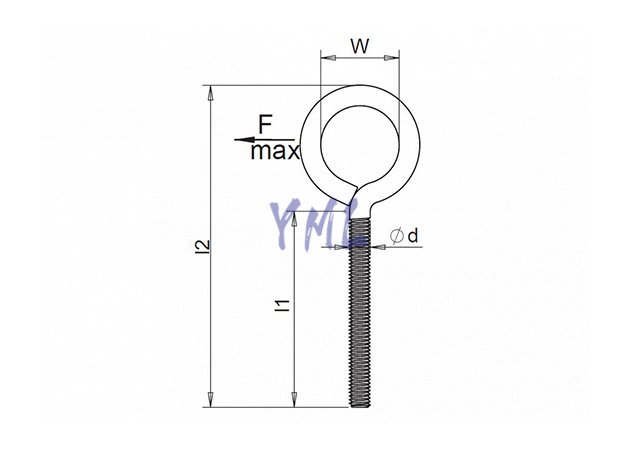

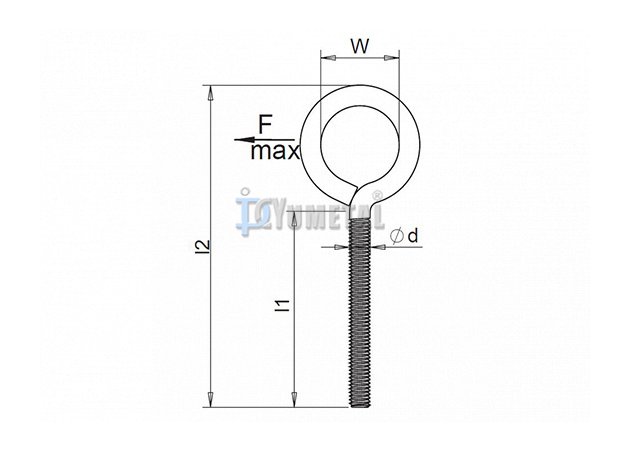

Technical parameters

Art No.	Thread	l1	l2	W	d	F max*	Weight
Art No.		mm	mm	mm	mm	kg	kg/100pcs
SEB04-M3x15	M3	15	26	5	2.4	7.5	0.16
SEB04-M4x20	M4	20	35	6	3.3	12.5	0.38
SEB04-M4x30	M4	30	45	6	3.3	12.5	0.44
SEB04-M4x40	M4	40	55	6	3.3	12.5	0.52
SEB04-M5x20	M5	20	40	8	4.2	20	0.69
SEB04-M5x30	M5	30	50	8	4.2	20	0.84
SEB04-M5x40	M5	40	60	8	4.2	20	0.97
SEB04-M5x50	M5	50	70	8	4.2	20	1.08
SEB04-M5x60	M5	60	80	8	4.2	20	1.21
SEB04-M6x20	M6	20	45	10	5.0	40	1.14
SEB04-M6x25	M6	25	50	10	5.0	40	1.22
SEB04-M6x30	M6	30	55	10	5.0	40	1.30
SEB04-M6x40	M6	40	65	10	5.0	40	1.45
SEB04-M6x50	M6	50	75	10	5.0	40	1.65
SEB04-M6x60	M6	60	85	10	5.0	40	1.85
SEB04-M6x80	M6	80	105	10	5.0	40	2.20
SEB04-M6X100	M6	100	125	10	5.0	40	2.55
SEB04-M8x20	M8	20	50	13	6.8	80	2.40
SEB04-M8x30	M8	30	60	13	6.8	80	2.70
SEB04-M8x40	M8	40	70	13	6.8	80	3.15
SEB04-M8x50	M8	50	80	13	6.8	80	3.40
SEB04-M8x60	M8	60	90	13	6.8	80	3.70
SEB04-M8x80	M8	80	110	13	6.8	80	4.30
SEB04-M8x100	M8	100	130	13	6.8	80	4.90
SEB04-M8x120	M8	120	150	13	6.8	80	5.50
SEB04-M8x160	M8	160	190	13	6.8	80	6.80
SEB04-M10x60	M10	60	100	16	8.8	150	6.60
SEB04-M10x80	M10	80	120	16	8.8	150	7.60
SEB04-M10x100	M10	100	140	16	8.8	150	8.60
SEB04-M10x120	M10	120	160	16	8.8	150	9.60
SEB04-M10x160	M10	160	200	16	8.8	150	11.60
SEB04-M10x200	M10	200	240	16	8.8	150	13.80
SEB04-M12x160	M12	160	210	20	10.6	250	19.20
