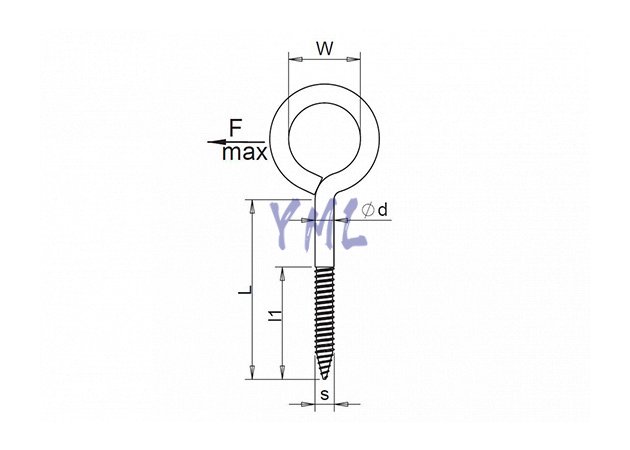

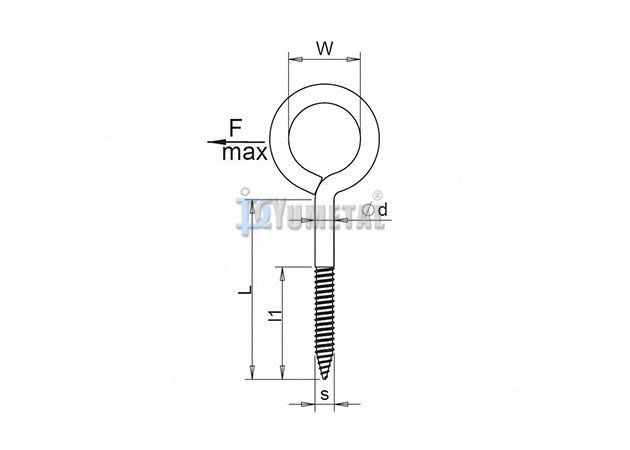

| Art No. | d | L | W | l1 |  | F max* | Weight |
| mm | mm | mm | mm | mm | kg | kg/100pcs | |
| SE01-1.5x6 | 1.5 | 6 | 3 | 4 | 3 | 2.5 | 0.03 |
| SE01-2.0x8 | 2.0 | 8 | 4 | 5 | 4 | 5 | 0.06 |
| SE01-2.0x10 | 2.0 | 10 | 5 | 7 | 4 | 7.5 | 0.09 |
| SE01-2.0x12 | 2.0 | 12 | 6 | 7 | 4 | 10 | 0.12 |
| SE01-2.5x13 | 2.5 | 13 | 7 | 9 | 5 | 10 | 0.16 |
| SE01-2.5x16 | 2.5 | 16 | 8 | 11 | 5 | 10 | 0.25 |
| SE01-3.0x20 | 3.0 | 20 | 8 | 12 | 6 | 12.5 | 0.34 |
| SE01-3.0x25 | 3.0 | 25 | 10 | 16 | 6 | 12.5 | 0.42 |
| SE01-3.0x30 | 3.0 | 30 | 10 | 15 | 6 | 12.5 | 0.50 |
| SE01-3.5x25 | 3.5 | 25 | 12 | 16 | 6 | 20 | 0.63 |
| SE01-3.5x30 | 3.5 | 30 | 12 | 16 | 6 | 20 | 0.72 |
| SE01-4.0x30 | 4.0 | 30 | 16 | 16 | 8 | 20 | 1.01 |
| SE01-4.0x40 | 4.0 | 40 | 14 | 22 | 8 | 20 | 0.85 |
| SE01-4.5x35 | 4.5 | 35 | 16 | 18 | 8 | 25 | 1.18 |
| SE01-4.5x40 | 4.5 | 40 | 16 | 22 | 8 | 20 | 1.11 |
| SE01-4.5x50 | 4.5 | 50 | 16 | 25 | 8 | 20 | 1.21 |
| SE01-5.0x40 | 5.0 | 40 | 20 | 25 | 10 | 25 | 1.85 |
| SE01-5.0x50 | 5.0 | 50 | 20 | 25 | 10 | 35 | 2.10 |
| SE01-6.0x50 | 6.0 | 50 | 25 | 25 | 10 | 50 | 2.80 |
| SE01-6.0x60 | 6.0 | 60 | 25 | 32 | 10 | 50 | 3.05 |
| SE01-8.0x80 | 8.0 | 80 | 30 | 50 | 12 | 100 | 7.08 |
| SE01-8.0x100 | 8.0 | 100 | 30 | 50 | 12 | 100 | 7.86 |
| SE01-8.0x120 | 8.0 | 120 | 30 | 50 | 12 | 100 | 8.64 |
| SE01-8.0x160 | 8.0 | 160 | 30 | 65 | 12 | 100 | 10.2 |
