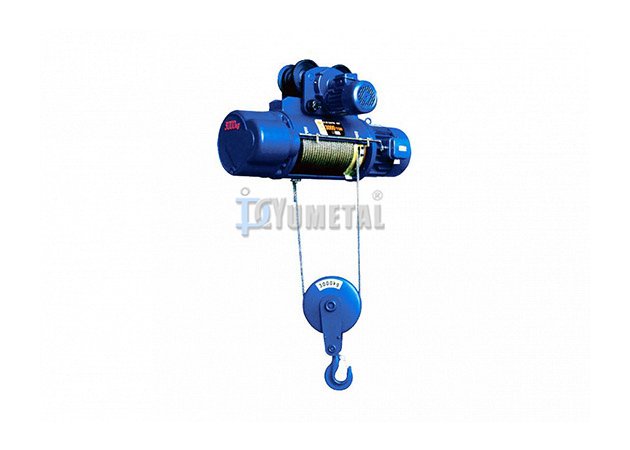

| Model | CD1 MD1 | ||||||||||||||||||||||||||||||||||||
| Capacity | Ton | 0.50 | 1.00 | 2.00 | 3.00 | 5.00 | 10.00 | ||||||||||||||||||||||||||||||
| Work Rule | M3 | M3 | M3 | M3 | M3 | M3 | |||||||||||||||||||||||||||||||
| Lifting Height | m | 6.00 | 9.00 | 12.00 | 18.00 | 24.00 | 30.00 | 6.00 | 9.00 | 12.00 | 18.00 | 24.00 | 30.00 | 6.00 | 9.00 | 12.00 | 18.00 | 24.00 | 30.00 | 6.00 | 9.00 | 12.00 | 18.00 | 24.00 | 30.00 | 6.00 | 9.00 | 12.00 | 18.00 | 24.00 | 30.00 | 6.00 | 9.00 | 12.00 | 18.00 | 24.00 | 30.00 |
| Lifting Speed | m/min | 8 8/0.8 | 8 8/0.8 | 8 8/0.8 | 8/0.8 8 | 8/0.8 8 | 8/0.8 8 | ||||||||||||||||||||||||||||||
| Running Speed | m/min | 20 20/6.7 30 30/10 | 20 20/6.7 30 30/10 | 20 20/6.7 30 30/10 | 20 20/6.7 30 30/10 | 20 20/6.7 30 30/10 | 20 20/6.7 30 30/10 | ||||||||||||||||||||||||||||||
| Pulley NO. | 2/1 | 2/1 | 2/1 | 2/1 | 2/1 | 2/1 | |||||||||||||||||||||||||||||||
| Lifting Motor Model & Power | kw | ZDYII-(0.8) ZDSI-0.2/0.8(0.2/0.8) | ZD22-4(1.5) ZDSI-0.2/1.5 (0.2/1.5) | ZD31-4 (3) ZDSI-0.4 (0.4/3) | ZD32-4 (4.5) ZDSI-0.4/4.5 | ZD41-4 (7.5) ZDSI-0.8/7.5 (0.8/7.5) ZD51-4 (13) | ZDSI-1.5/13 (1.5/13) | ||||||||||||||||||||||||||||||
| Running Motor Model & Power | kw | ZDY11-4(0.2) | ZDY11-4(0.2) | ZDY12-4(0.4) | ZDY12-4(0.4) | ZDY21-4(0.8) | ZDY21-4(0.8) | ||||||||||||||||||||||||||||||
| Levels of Protection | IP44 IP54 | IP44 IP54 | IP44 IP54 | IP44 IP54 | IP44 IP54 | IP44 IP54 | |||||||||||||||||||||||||||||||
| I-Beam Track Model | 116a ~128b | 116a ~128b | 120a~ 145c | 120a~145c | 125a~163c | 125a~163c | |||||||||||||||||||||||||||||||
| Min.Radius | 1.00 | 1.00 | 1.00 | 1.80 | 2.50 | 3.20 | 1.00 | 1.00 | 1.20 | 1.80 | 2.50 | 3.20 | 1.20 | 1.20 | 1.50 | 2.00 | 2.80 | 3.50 | 1.20 | 1.20 | 1.50 | 2.00 | 2.80 | 3.50 | 1.50 | 1.50 | 1.50 | 2.50 | 3.00 | 4.00 | 1.50 | 1.50 | 1.50 | 2.50 | 3.00 | 4.00 | |
| Weight | kg/pc | 135.00 | 140.00 | 155.00 | 175.00 | 185.00 | 195.00 | 180.00 | 190.00 | 205.00 | 220.00 | 235.00 | 255.00 | 250.00 | 265.00 | 300.00 | 320.00 | 340.00 | 360.00 | 320.00 | 340.00 | 350.00 | 380.00 | 410.00 | 440.00 | 590.00 | 630.00 | 650.00 | 700.00 | 750.00 | 800.00 | 820.00 | 875.00 | 960.00 | 960.00 | 1015.00 | 1125.00 |
