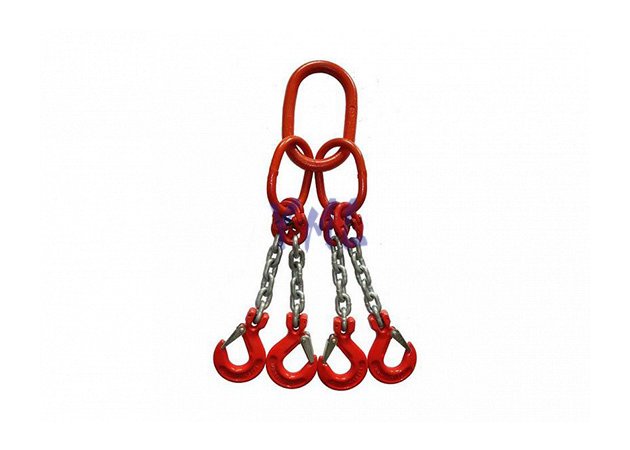

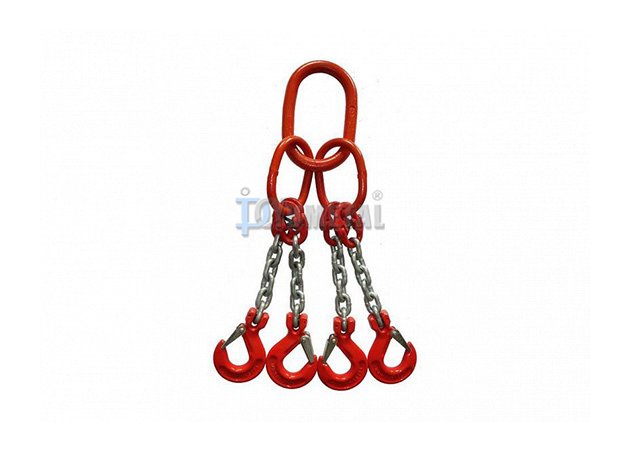

Chain sling
Chain sling is a convenient lifting tool , formed with lifting ring and other Accessories.
The diameter of lifting chain is 6mm—48mm
Designed standard: DIN5685,EN818-2,GB/T20652,GB/T12718,GB/T20946
The general usage grade of chain is S(6),T (8)
The ratio between usage load and breaking load is 1:4
There are single-leg , double-leg ,multi-leg , ring chains and other structure chains.
The characteristics of the chain :Wear-resistant, anti-high temperature, corrosion-resistance, low elongation
lifting chain
Material :high-quality alloy steel ( 20Mn2、20MnV、25MnV and imports of alloy steel ) ;
Manufacturing standards in line with the standard JB/T8108.1-1999 of lifting short chain;
Strength grade ： M(4) 、S(6) 、T(8);
Security assurances: four-fold safety factor, 2.5 proof load.
Elongation of chain breaking ≥ 17%.
The technical parameters of lifting chain
| Art No. | Chain Dia | Inside Length | Outside Width | Weight | WLL (KN) | Breaking Load (KN) | ||
| mm | mm | mm | kg/m | S6 | T8 | S6 | T8 | |
| SL0101 | 6.00 | 18.00 | 21.00 | 0.79 | 9.00 | 11.00 | 35.80 | 45.20 |
| SL0102 | 8.00 | 24.00 | 28.00 | 1.38 | 16.00 | 20.00 | 63.40 | 80.40 |
| SL0103 | 10.00 | 30.00 | 35.00 | 2.20 | 25.00 | 32.00 | 99.00 | 125.00 |
| SL0104 | 12.00 | 36(42) | 42.00 | 3.10 | 36.00 | 46.00 | 144.00 | 181.00 |
| SL0105 | 14.00 | 42(50) | 49.00 | 4.13 | 50.00 | 63.00 | 198.00 | 250.00 |
| SL0106 | 16.00 | 48(56) | 56.00 | 5.63 | 63.00 | 80.00 | 254.00 | 320.00 |
| SL0107 | 18.00 | 54(64) | 63.00 | 6.85 | 80.00 | 100.00 | 322.00 | 410.00 |
| SL0108 | 20.00 | 60.00 | 70.00 | 8.60 | 100.00 | 125.00 | 396.00 | 500.00 |
| SL0109 | 22.00 | 66(86) | 82.00 | 10.20 | 120.00 | 153.00 | 380.10 | 480.00 |
| SL0110 | 24.00 | 72(86) | 91.00 | 12.78 | 150.00 | 180.00 | 600.00 | 720.00 |
| SL0111 | 26.00 | 78(92) | 91.00 | 14.87 | 180.00 | 213.00 | 720.00 | 850.00 |
| SL0112 | 30.00 | 90.00 | 105.00 | 19.60 | 227.00 | 283.00 | 892.00 | 1130.00 |
| SL0113 | 32.00 | 60.00 | 106.00 | 22.29 | 250.00 | 322.00 | 1014.00 | 1286.00 |
| SL0114 | 34.00 | 66(86) | 109.00 | 22.70 | 320.00 | 363.00 | 1280.00 | 1450.00 |
