CH36

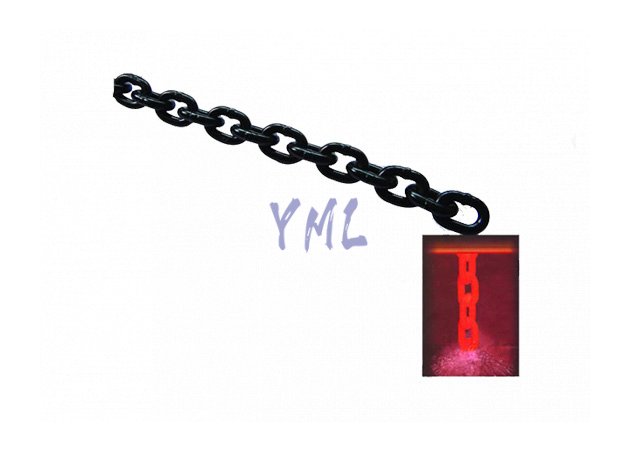

CH36 G80 Black Painted Link Chain

Inquiry Now Add to cart

Technical parameters

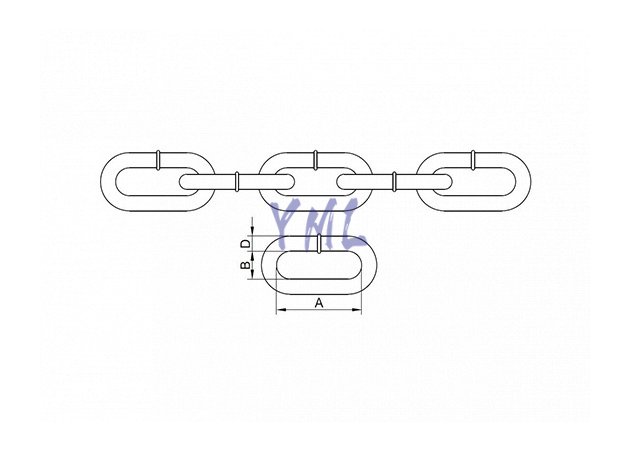

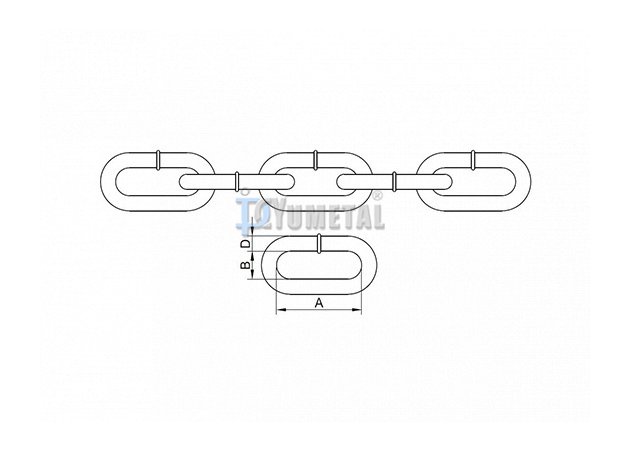

Art No.	Size	Width		Working Load Limited	Test Load	Breaking Load Min.	Approx Weight
Art No.	Dia x IL	Inside min.	Outside max.	ton	kn	kn	kg/m
CH36-6X18	6 x 18	7.5	21.0	1.1	27.0	45.2	0.79
CH36-7X21	7 x 21	9.0	24.5	1.5	37.0	61.6	1.07
CH36-8X24	8 x 24	10.0	28.0	2.0	48.0	80.4	1.38
CH36-10X30	10 x 30	12.5	35.0	3.2	76.0	125.0	2.20
CH36-11X33	11 x 33	12.6	36.5	3.8	92.0	154.0	2.33
CH36-12X36	12 x 36	15.0	42.0	4.6	109.0	181.0	3.10
CH36-12.5X38	12.5 x 38	15.5	42.2	4.9	117.0	196.0	3.30
CH36-13X39	13 x 39	16.3	46.0	5.0	128.0	214.0	3.80
CH36-14X42	14 x 42	18.0	49.0	6.3	150.0	250.0	4.13
CH36-14X50	14 x 50	17.0	48.0	6.3	150.0	250.0	4.00
CH36-15X46	15 x 46	20.0	52.0	7.0	168.0	280.0	5.17
CH36-16X48	16 x 48	20.0	56.0	8.0	192.0	320.0	5.63
CH36-16X49	16 x 49	24.5	59.5	8.0	192.0	320.0	5.71
CH36-16X64	16 x 64	23.9	58.9	8.0	192.0	320.0	5.11
CH36-18X54	18 x 54	23.0	63.0	10.0	246.0	410.0	6.85
CH36-18X64	18 x 64	21.0	60.0	10.0	246.0	410.0	6.60
CH36-19X57	19 x 57	23.7	63.2	11.3	270.0	450.0	7.70
CH36-20X60	20 x 60	25.0	70.0	12.5	300.0	500.0	8.60
CH36-22X65	22 x 65	28.0	74.2	15.3	366.0	610.0	10.70
CH36-22X66	22 x 66	28.0	77.0	15.3	366.0	610.0	10.20
CH36-22X86	22 x 86	26.0	74.0	15.3	366.0	610.0	9.50
CH36-24X72	24 x 72	32.0	82.0	18.0	432.0	720.0	12.78
CH36-24X86	24 x 86	28.0	79.0	18.0	432.0	720.0	11.60
CH36-26X78	26 x 78	35.0	91.0	21.3	510.0	850.0	14.87
CH36-26X92	26 x 92	30.0	86.0	21.3	510.0	850.0	13.70
CH36-30X90	30 x 90	38.0	105.0	28.3	678.0	1130.0	19.60
CH36-30X108	30 x 108	34.0	98.0	28.3	678.0	1130.0	18.00
CH36-32X96	32 x 96	40.0	106.0	32.2	772.0	1286.0	22.29
