CH15

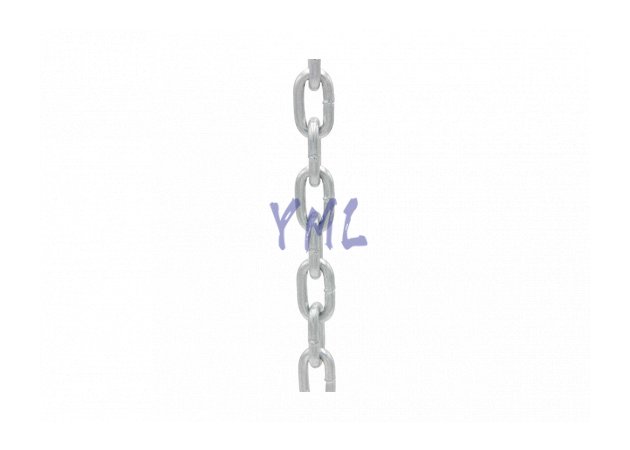

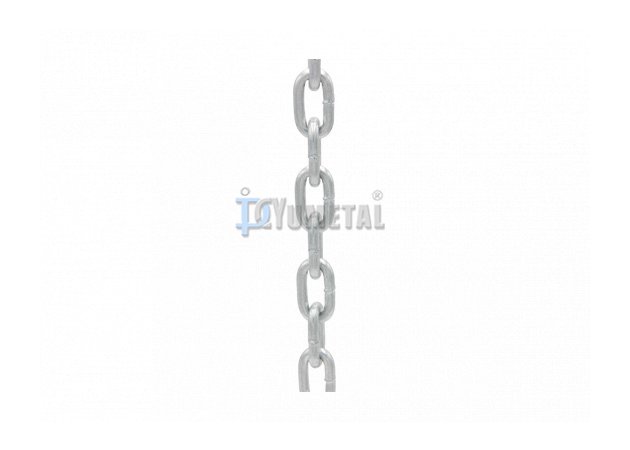

CH15 DIN764 Link Chain

Inquiry Now Add to cart

Technical parameters

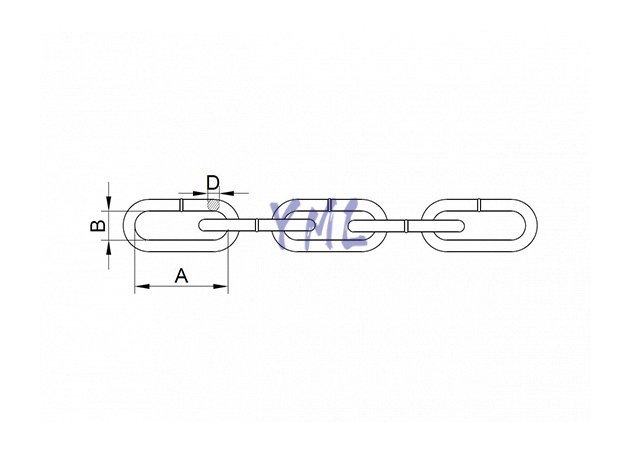

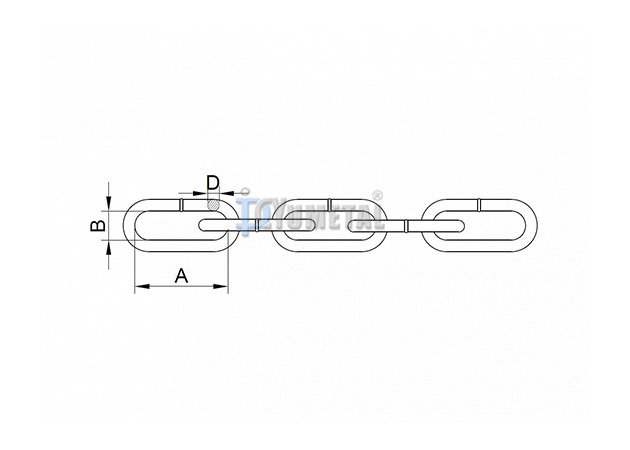

Art No.	Diameter		Inside Length		Inside Width	Outside Width	Length per 11 links		Test Load	Breaking Load	Weight
	D		A		B
	mm	±mm	mm	±mm	mm	mm	mm	±mm	kg	kn	kg/M
CH15-04	4	0.20	16	0.30	5	14	176	1.60	400	7	31.3
				0.20				0.90
CH15-05	5	0.20	18	0.40	7	18.2	198	1.80	680	11.8	51.4
				0.20				1.00
CH15-06	6	0.20	21	0.50	8	21.5	231	2.00	850	16.5	74
				0.20				1.10
CH15-08	8	0.20	28	0.50	11	29	308	2.20	1680	32	131.5
				0.30				1.20
CH15-10	10	0.30	35	0.60	14	36	385	2.70	2630	50	200
				0.30				1.50
CH15-12	12	0.30	42	0.60	16	41	462	3.20	3680	70	298
				0.30				1.80
CH15-13	13	0.40	45	0.70	18	47	495	3.50	4200	80	350
				0.40				2.00
CH15-14	14	0.45	49	0.75	20	48	539	3.80	4830	92	406
				0.45				2.00
CH15-16	16	0.50	56	0.90	22	58	616	4.30	6700	125	520
				0.50				2.50
CH15-18	18	0.80	63	1.00	24	65	693	4.70	8400	160	650
				0.50				2.80
CH15-20	20	1.00	70	1.10	27	72	770	5.40	10000	200	820
				0.60				3.20
CH15-23	23	1.20	80	1.30	31	83	880	6.20	13000	250	1100
				0.70				3.50
CH15-26	26	1.30	91	1.50	35	94	1001	7.00	16000	320	1400
				0.80				4.00
