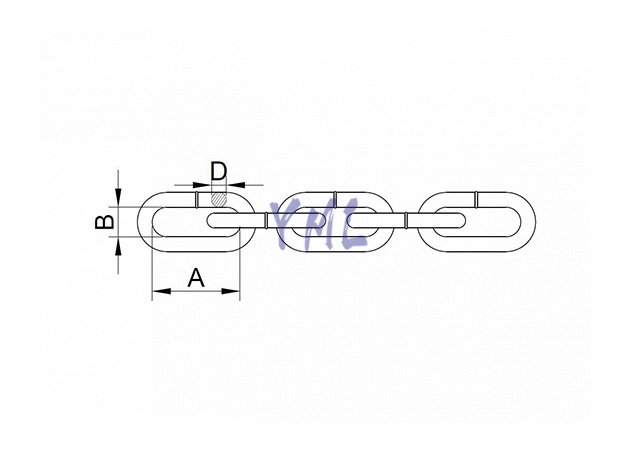

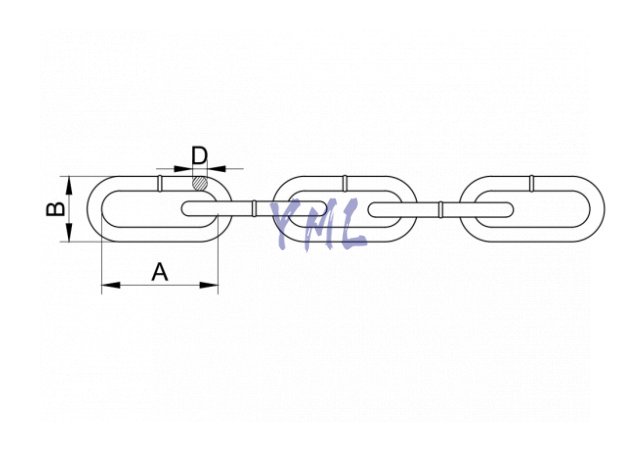

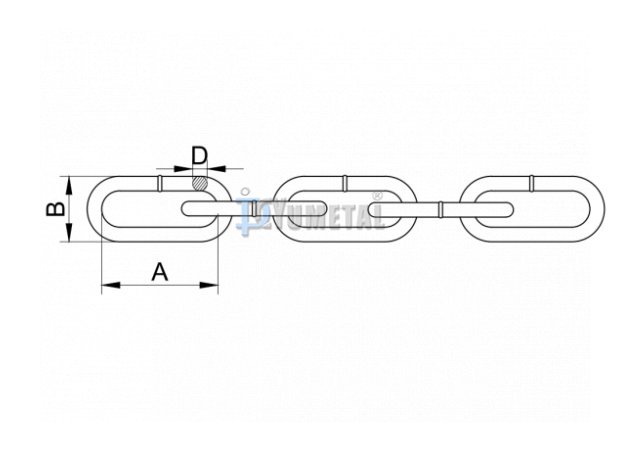

| Art No. | Diameter | Inside Length | Outside Width | Test Load | Breaking load | Type of Link | Weight |
| D | A | B | |||||
| mm | mm | mm | N | N | kg/100m | ||
| CH13-2.0A | 2 | 12 | 8 | 500 | 1250 | A | 7 |
| CH13-02C | 22 | C | 6 | ||||
| CH13-2.5A | 2.5 | 14 | 10 | 750 | 2000 | A | 11 |
| CH13-2.5C | 24 | C | 10 | ||||
| CH13-3.0A | 3 | 16 | 12 | 1120 | 2800 | A | 16.5 |
| CH13-3.0C | 26 | C | 15 | ||||
| CH13-3.5A | 3.5 | 18 | 14 | 1500 | 3850 | A | 22.5 |
| CH13-3.5C | 28 | C | 20 | ||||
| CH13-4.0A | 4 | 19 | 16 | 2000 | 5000 | A | 30 |
| CH13-4.0C | 32 | C | 27 | ||||
| CH13-4.5A | 4.5 | 20 | 18 | 2500 | 6300 | A | 39.5 |
| CH13-4.5C | 34 | C | 35 | ||||
| CH13-5.0A | 5 | 21 | 20 | 3150 | 7750 | A | 50 |
| CH13-5.0C | 35 | C | 43 | ||||
| CH13-5.5A | 5.5 | 23 | 22 | 3800 | 9500 | A | 60.5 |
| CH13-5.5C | 38.5 | C | 52 | ||||
| CH13-6.0A | 6 | 24 | 24 | 4500 | 11500 | A | 73 |
| CH13-6.0C | 42 | C | 63 | ||||
| CH13-6.5A | 6.5 | 26 | 26 | 5400 | 13500 | A | 86 |
| CH13-6.5C | 45.5 | C | 74 | ||||
| CH13-7.0A | 7 | 28 | 28 | 6000 | 15000 | A | 100 |
| CH13-7.0C | 49 | C | 86 | ||||
| CH13-8.0A | 8 | 32 | 32 | 8000 | 20000 | A | 130 |
| CH13-8.0C | 52 | C | 110 | ||||
| CH13-8.5A | 8.5 | 34 | 34 | 9000 | 22500 | A | 149 |
| CH13-8.5C | 56 | C | 125 | ||||
| CH13-9.0A | 9 | 36 | 36 | 10000 | 25000 | A | 165 |
| CH13-9.0C | 59 | C | 141 | ||||
| CH13-10A | 10 | 40 | 40 | 12500 | 31000 | A | 205 |
| CH13-10C | 65 | C | 175 | ||||
| CH13-11A | 11 | 44 | 44 | 15000 | 38000 | A | 250 |
| CH13-11C | 72 | C | 211 | ||||
| CH13-12A | 12 | 48 | 48 | 18000 | 45000 | A | 290 |
| CH13-12C | 78 | C | 255 | ||||
| CH13-13A | 13 | 52 | 52 | 21200 | 53000 | A | 345 |
| CH13-13C | 82 | C | 295 |
