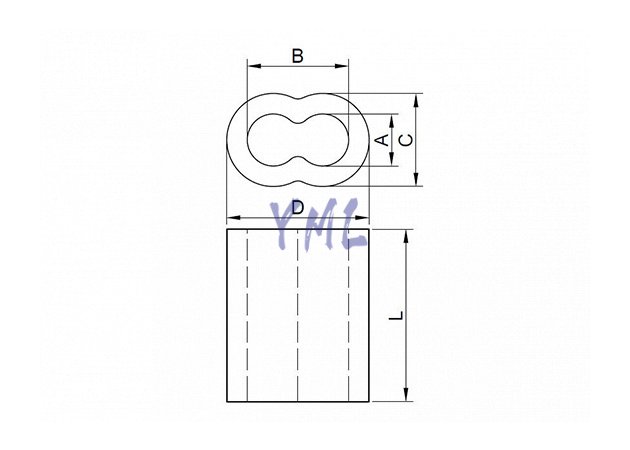

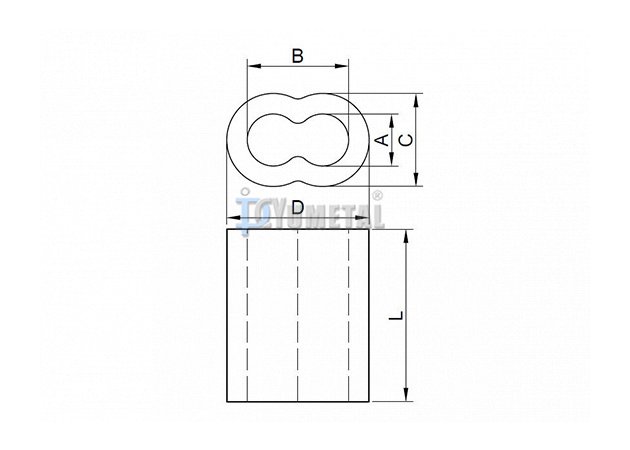

| Art No. | Size | A | B | C | D | L | Weight | ||||||
| inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | kg/1000pcs | |
| FE03-3/64 | 3/64" | 1.19 | 1/16" | 1.59 | 1/8" | 3.18 | 9/64" | 3.60 | 13/64" | 5.20 | 3/8" | 9.50 | 0.276 |
| FE03-1/16 | 1/16" | 1.58 | 5/16" | 1.98 | 5/32" | 3.97 | 11/64" | 4.40 | 1/4" | 6.40 | 3/8" | 9.50 | 0.433 |
| FE03-5/64 | 5/64" | 1.98 | 3/32" | 2.38 | 3/16" | 4.76 | 13/64" | 5.20 | 5/16" | 7.90 | 3/8" | 9.50 | 0.645 |
| FE03-3/32 | 3/32" | 2.38 | 1/8" | 3.18 | 1/4" | 6.35 | 9/32" | 7.10 | 13/32" | 10.30 | 1/2" | 12.70 | 1.45 |
| FE03-1/8 | 1/8" | 3.18 | 5/32" | 3.97 | 5/16" | 7.94 | 11/32" | 8.70 | 1/2" | 12.70 | 5/8" | 15.80 | 2.70 |
| FE03-5/32 | 5/32" | 3.97 | 3/16" | 4.76 | 3/8" | 9.53 | 3/8" | 9.53 | 9/16" | 14.30 | 11/16" | 17.40 | 3.67 |
| FE03-3/16 | 3/16" | 4.76 | 7/32" | 5.56 | 7/16" | 11.11 | 7/16" | 11.11 | 21/32" | 16.70 | 1" | 25.40 | 7.18 |
| FE03-7/32 | 7/32" | 5.56 | 1/4" | 6.35 | 1/2" | 12.70 | 1/2" | 12.70 | 3/4" | 19.00 | 1-1/16" | 26.90 | 10.00 |
| FE03-1/4 | 1/4" | 6.35 | 9/32" | 7.14 | 9/16" | 14.29 | 17/32" | 13.50 | 13/16" | 20.60 | 1-1/8" | 28.50 | 11.76 |
| FE03-9/32 | 9/32" | 7.14 | 5/16" | 7.94 | 5/8" | 15.88 | 9/16" | 14.30 | 7/8" | 22.20 | 1-3/16" | 30.10 | 13.62 |
| FE03-5/16 | 5/16" | 7.94 | 3/8" | 9.53 | 23/32" | 19.05 | 11/16" | 17.50 | 1-1/32" | 26.20 | 1-1/4" | 31.70 | 20.94 |
| FE03-3/8 | 3/8" | 9.53 | 7/16" | 11.11 | 27/32" | 22.23 | 3/4" | 19.10 | 1-5/32" | 29.40 | 1-7/16" | 36.50 | 28.18 |
| FE03-7/16 | 7/16" | 11.11 | 1/2" | 12.7 | 1" | 25.40 | 15/16" | 23.80 | 1-7/16" | 36.50 | 1-11/16" | 42.80 | 52.00 |
| FE03-1/2 | 1/2" | 12.7 | 9/16" | 14.29 | 1-1/8" | 28.58 | 1-1/16" | 27.00 | 1-5/8" | 41.30 | 2" | 50.80 | 80.15 |
| FE03-9/16 | 9/16" | 14.29 | 5/8" | 15.88 | 1-1/4" | 31.75 | 1-1/8" | 28.60 | 1-3/4" | 44.50 | 2-1/8" | 53.90 | 99.88 |
| FE03-5/8 | 5/8" | 15.88 | 11/16" | 17.46 | 1-3/8" | 34.93 | 1-1/4" | 31.80 | 1-15/16" | 49.20 | 2-1/2" | 63.50 | 139.78 |
