| Art No. | Size inch | WLL lbs | Dimensions(mm) | Weight kg/pc | |||

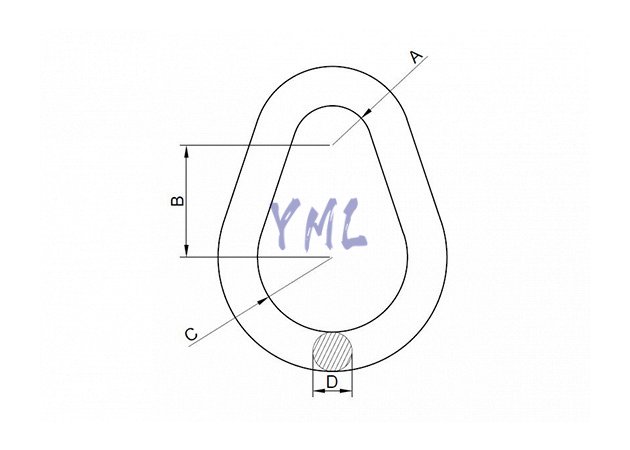

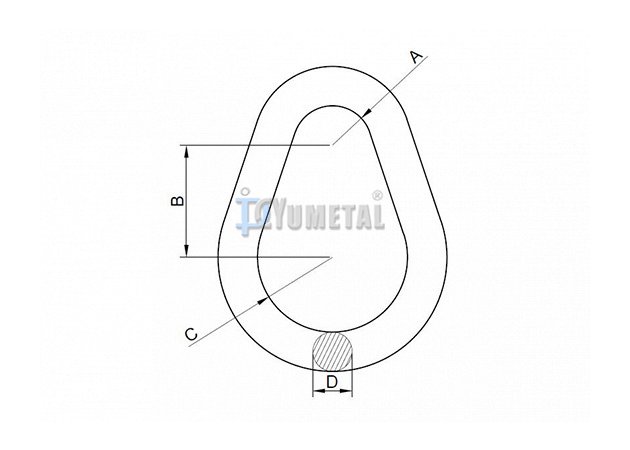

| A | B | C | D | ||||
| RN07-3/8 | 3/8 | 1800 | 10.00 | 28.50 | 19.00 | 10.00 | 0.10 |
| RN07-1/2 | 1/2 | 700 | 12.50 | 38.00 | 25.50 | 12.50 | 0.25 |
| RN07-5/8 | 5/8 | 9000 | 16.00 | 47.50 | 32.00 | 16.00 | 0.50 |
| RN07-3/4 | 3/4 | 12300 | 19.00 | 57.00 | 38.00 | 19.00 | 0.80 |
| RN07-7/8 | 7/8 | 14000 | 22.00 | 67.00 | 44.50 | 22.00 | 1.40 |
| RN07-1 | 1 | 24360 | 25.00 | 76.00 | 51.00 | 25.00 | 1.90 |
| RN07-1 1/8 | 1-1/8 | 30600 | 28.00 | 86.00 | 57.00 | 28.50 | 2.92 |
| RN07-1 1/4 | 1-1/4 | 36000 | 32.00 | 95.00 | 63.50 | 31.50 | 3.75 |
| RN07-1 3/8 | 1-3/8 | 43000 | 35.00 | 105.00 | 70.00 | 35.00 | 5.12 |
| RN07-1 1/2 | 1-1/2 | 54300 | 38.00 | 114.00 | 76.00 | 38.00 | 6.50 |
| RN07-1 5/8 | 1-5/8 | 62600 | 41.50 | 124.00 | 82.50 | 41.30 | 8.40 |
| RN07-1 3/4 | 1-3/4 | 84900 | 44.50 | 133.00 | 89.00 | 44.50 | 10.21 |
| RN07-1 7/8 | 1-7/8 | 95800 | 48.00 | 143.00 | 95.50 | 47.60 | 13.15 |
| RN07-2 | 2 | 102600 | 51.00 | 152.50 | 102.00 | 51.00 | 15.42 |
| RN07-2 1/4 | 2-1/4 | 143100 | 57.50 | 171.50 | 114.50 | 57.00 | 21.78 |
| RN07-2 1/2 | 2-1/2 | 147300 | 63.50 | 190.50 | 127.00 | 63.50 | 29.94 |
| RN07-2 3/4 | 2-3/4 | 216900 | 70.00 | 209.50 | 140.00 | 70.00 | 39.92 |
| RN07-3 | 3 | 228000 | 76.50 | 229.00 | 152.50 | 76.00 | 51.71 |
| RN07-3 1/4 | 3-1/4 | 262200 | 82.50 | 248.00 | 165.00 | 82.50 | 66.23 |
| RN07-3 1/2 | 3-1/2 | 279000 | 89.00 | 257.50 | 178.00 | 89.00 | 82.10 |
| RN07-4 | 4 | 373000 | 102.00 | 305.00 | 203.50 | 101.50 | 122.93 |
