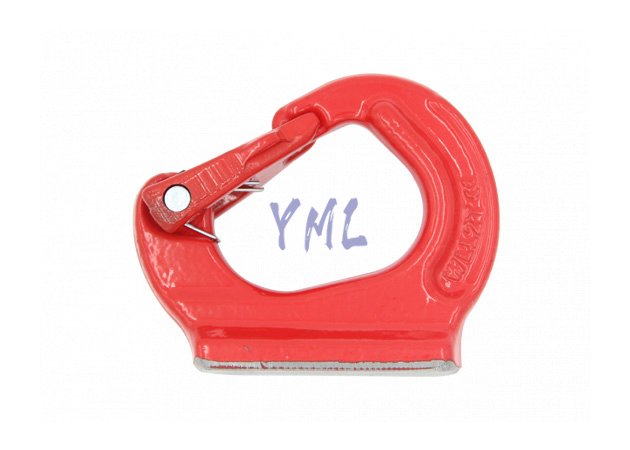

GK59 G80 Weld On Hook

Inquiry Now Add to cart

Technical parameters

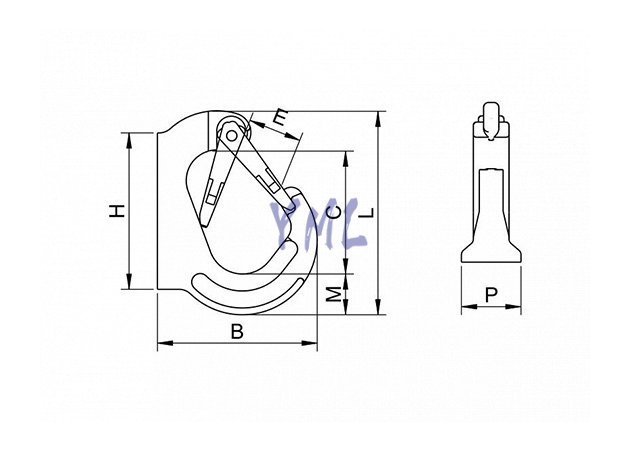

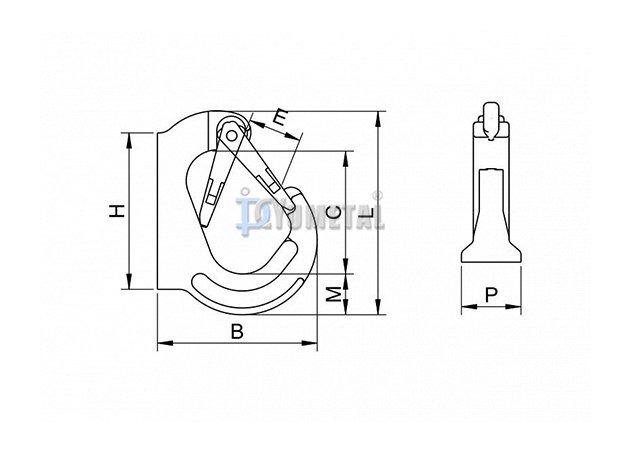

Art No.	Size	WLL	B.L	Dimensions(mm)							Weight
Art No.	ton	ton	ton	B	C	E	H	M	P	L	kg/pc
GK59-02	2T	2	10	92	67	30	81	23.3	34	114	0.83
GK59-03	3T	3	15	106	73.5	33.2	116	33.6	36	129	1.20
GK59-05	5T	5	25	133	94	39	159	44	43.5	171	2.46
GK59-08	8T	8	40	136.5	94	35	159	44	51	177	3.26
GK59-10	10T	10	50	169.5	134.5	50.54	194	54.7	53	223	5.17

Ultimate load is 5 times the working load limit.
