| Art No. | Size | WLL | Breaking Load | Dimensions (mm) | Weight | |||||

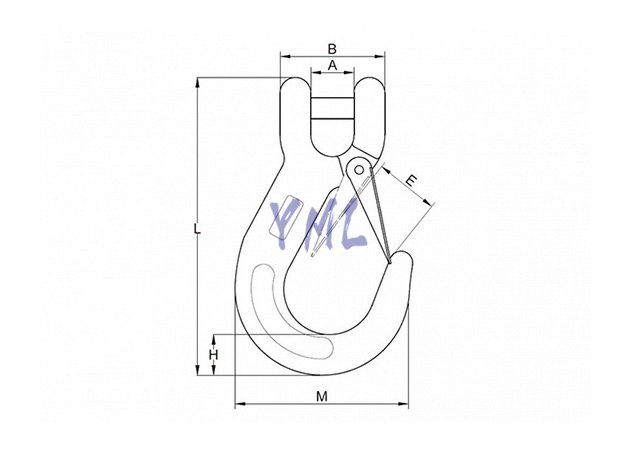

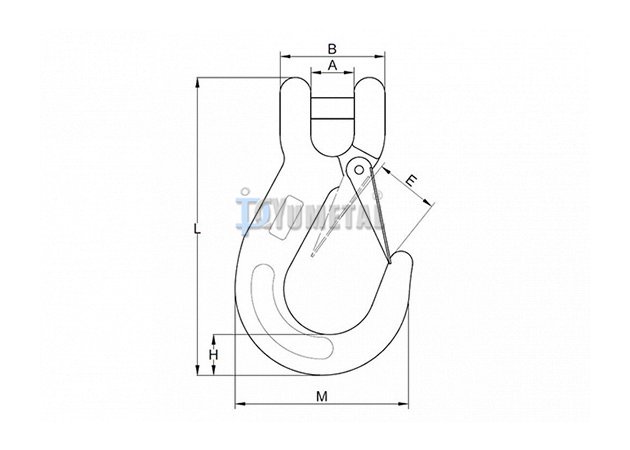

| mm | ton | ton | A±0.5 | B ±1 | E±1.5 | H±1 | M±2 | L±2.5 | kg/pc | |
| GK29-06 | 6 | 1.4 | 5.6 | 7.5 | 32 | 18.5 | 21 | 68.5 | 109 | 0.33 |
| GK29-08 | 8 | 2.5 | 10 | 9.5 | 37 | 25 | 27.5 | 88 | 134 | 0.70 |
| GK29-10 | 10 | 4 | 16 | 12 | 48 | 28 | 33.5 | 105.5 | 161.5 | 1.30 |
| GK29-13 | 13 | 6.7 | 26.8 | 15 | 59 | 38 | 42 | 134 | 203 | 2.30 |
| GK29-16 | 16 | 10 | 40 | 17.5 | 70 | 44 | 50 | 160.5 | 248 | 3.60 |
| GK29-20 | 20 | 16 | 64 | 25 | 85 | 52 | 56 | 190.5 | 297 | 7.30 |
| GK29-22 | 22 | 19 | 76 | 27 | 100 | 66 | 62 | 214.5 | 326 | 12.10 |
