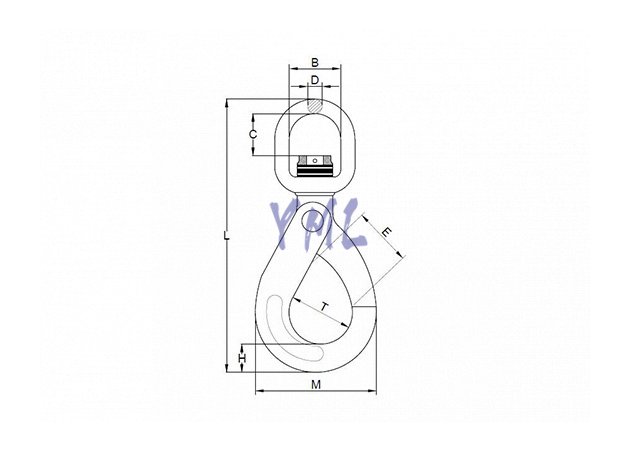

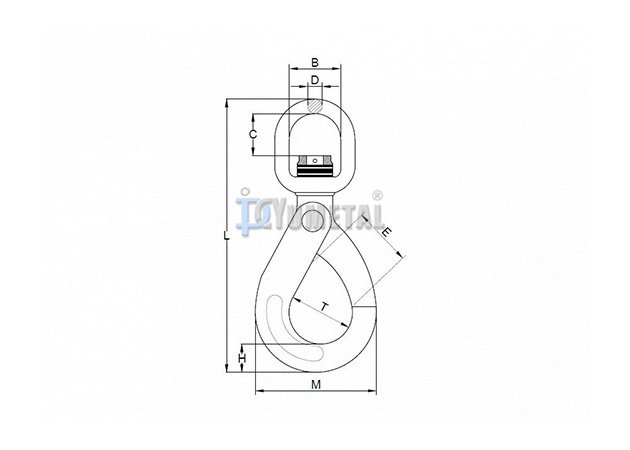

| Art No. | Size | WLL | Breaking Load | Dimensions (mm) | Weight | ||||||
| mm | ton | ton | B±1 | C ±1 | D±0.5 | E±1 | H±1 | M±2 | L±3 | kg/pc | |
| GK27-06 | 6 | 1.4 | 5.6 | 32.5 | 23 | 11.5 | 28 | 20 | 70 | 184 | 0.60 |
| GK27-08 | 8 | 2.5 | 10 | 36 | 28 | 13 | 35.5 | 26 | 90 | 229 | 1.10 |
| GK27-10 | 10 | 4 | 16 | 42 | 35 | 15.5 | 45 | 30 | 109 | 269 | 2.00 |
| GK27-13 | 13 | 6.7 | 26.8 | 50 | 40 | 17 | 53.5 | 40.5 | 138.5 | 330 | 4.00 |
| GK27-16 | 16 | 10 | 40 | 61 | 56 | 21.5 | 62 | 50.5 | 170.5 | 413 | 6.80 |
| GK27-20 | 20 | 16 | 64 | 72 | 62 | 26 | 76.5 | 62 | 192.5 | 463 | 12.50 |
| GK27-22 | 22 | 19 | 76 | 97 | 94 | 33 | 80 | 66 | 205 | 572 | 17.10 |
