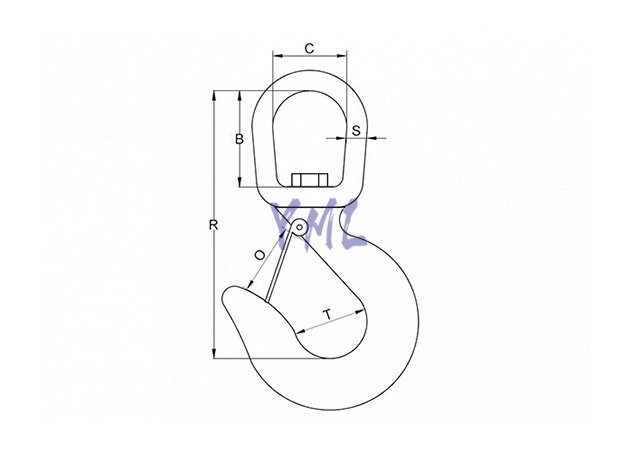

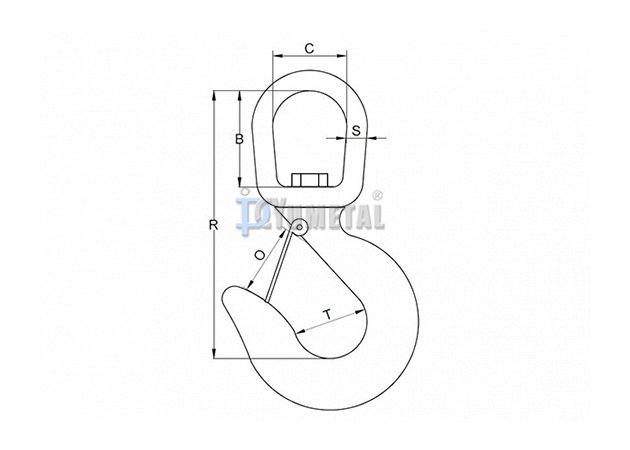

| Art No. | 322A-Alloy Steel | 322C-Carbon Steel | Dimensions(mm) | Weight | ||||||||
| (WLL) | (B.L) | (WLL) | (B.L) | A | E | B | H | K | L | M | kg/pc | |
| GK18-075 | 0.75T | 3.375T | 0.5T | 2.5T | 31.5 | 17 | 22.5 | 9 | 110 | 137 | 15 | 0.30 |
| GK18-010 | 1T | 4.5T | 0.75T | 3.75T | 32 | 17 | 22.5 | 9 | 108 | 137 | 16 | 0.34 |
| GK18-015 | 1.6T/1.5T | 6.75T | 1T | 5T | 37.5 | 22.5 | 29.5 | 12 | 133.5 | 163.5 | 16 | 0.57 |
| GK18-020 | 2T | 9T | 1.5T | 7.5T | 42.5 | 26 | 33 | 15.8 | 150.5 | 192 | 17.5 | 1.02 |
| GK18-030 | 3.2T/3T | 13.5T | 2T | 10T | 42.5 | 26 | 33 | 15.8 | 163 | 209 | 23 | 1.24 |
| GK18-050 | 5T | 22.5T | 3T | 15T | 48 | 32.5 | 39 | 18 | 191 | 246 | 31 | 2.25 |
| GK18-070 | 7T | 31.5T | 5T | 25T | 64 | 43 | 53 | 25 | 243.5 | 313 | 34 | 4.66 |
| GK18-110 | 11T | 49.5T | 7.5T | 37.5T | 70 | 49.5 | 53 | 28.5 | 277 | 364 | 41.5 | 7.40 |
| GK18-150 | 15T | 67.5T | 10T | 50T | 79 | 54.5 | 62 | 32 | 332 | 431 | 55.7 | 10.60 |
| GK18-220 | 22T | 99T | 15T | 75T | 105 | 81 | 108 | 40 | 427 | 543 | 70 | 21.40 |
| GK18-300 | 30T | 135T | 20T | 100T | 105 | 100 | 96 | 40 | 465.3 | 596 | 603 | 32.00 |
