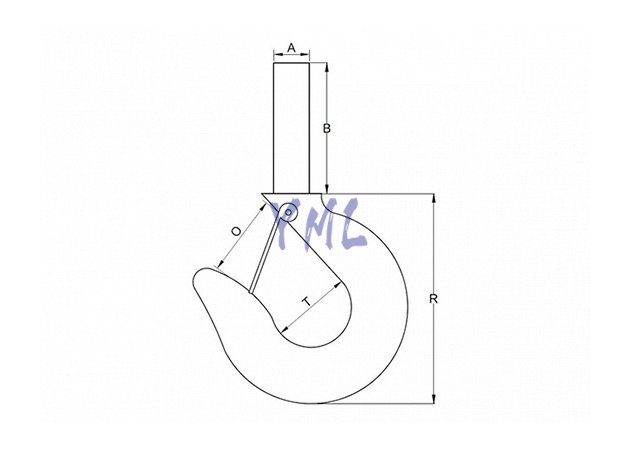

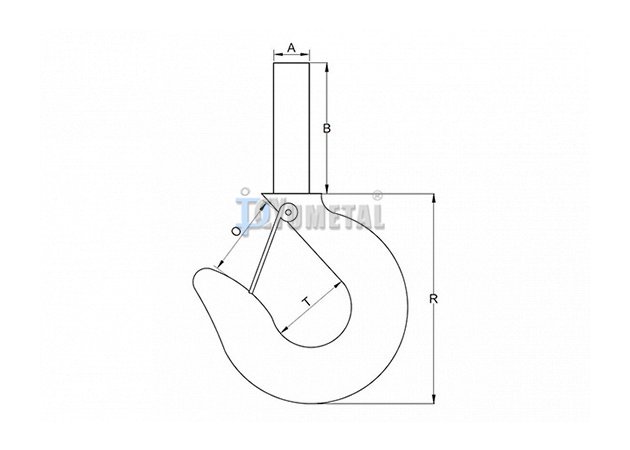

| Art No. | A | B | O | R | T | WLL | Breaking Load | Weight | ||
| mm | mm | mm | mm | mm | carbon steel (t) | alloy steel (t) | carbon steel (t) | alloy steel (t) | kg/pc | |
| GK16-15.0 | 15.0 | 50.8 | 22.3 | 57.8 | 20.5 | 0.75 | 1 | 3.75 | 5 | 0.24 |
| GK16-16.7 | 16.7 | 57.2 | 24.6 | 64.2 | 20.5 | 1 | 1.5 | 5 | 7.5 | 0.35 |
| GK16-18.3 | 18.3 | 63.5 | 25.4 | 68.2 | 21.0 | 1.5 | 2 | 7.5 | 10 | 0.47 |
| GK16-22.3 | 22.3 | 69.9 | 28.4 | 77.6 | 30.2 | 2 | 3 | 10 | 15 | 0.86 |
| GK16-29.4 | 29.4 | 82.5 | 34.0 | 95.9 | 35.1 | 3 | 4.5 | 15 | 22.5 | 1.78 |
| GK16-35.8 | 35.8 | 95.2 | 42.9 | 120.5 | 45.2 | 5 | 7 | 25 | 35 | 3.35 |
| GK16-42.9 | 42.9 | 107.8 | 52.3 | 149.1 | 53.5 | 7.5 | 11 | 37.5 | 55 | 5.98 |
| GK16-44.5 | 44.5 | 114.3 | 57.9 | 162.6 | 63.5 | 10 | 15 | 50 | 75 | 8.88 |
