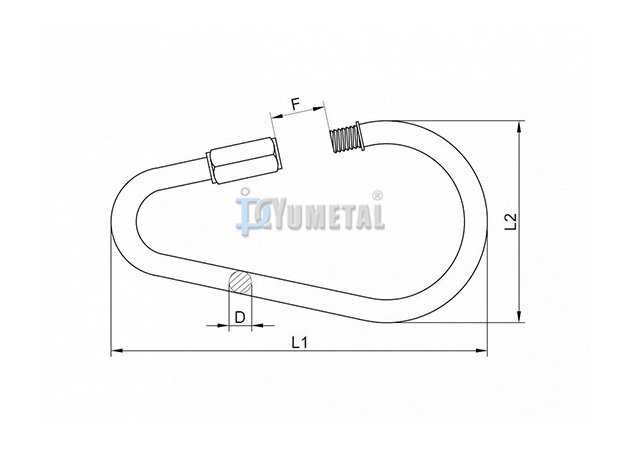

| Art No. | Size | SWL | L1 | L2 | F |
| mm | lbs | mm | mm | mm | |
| QL05-3.5 | 3.50 | 120.00 | 52.00 | 27.00 | 9.50 |
| QL05-04 | 4.00 | 350.00 | 60.00 | 32.00 | 11.00 |
| QL05-05 | 5.00 | 450.00 | 70.00 | 37.00 | 12.00 |
| QL05-06 | 6.00 | 600.00 | 81.00 | 42.80 | 14.00 |
| QL05-08 | 8.00 | 1100.00 | 100.00 | 50.80 | 17.00 |
| QL05-09 | 9.00 | 1300.00 | 108.00 | 57.00 | 19.00 |
| QL05-10 | 10.00 | 1500.00 | 117.50 | 63.50 | 20.50 |
| QL05-12 | 12.00 | 1650.00 | 141.00 | 76.00 | 23.00 |
