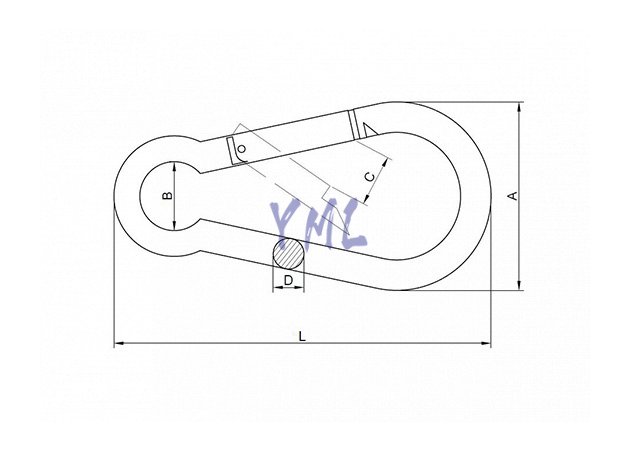

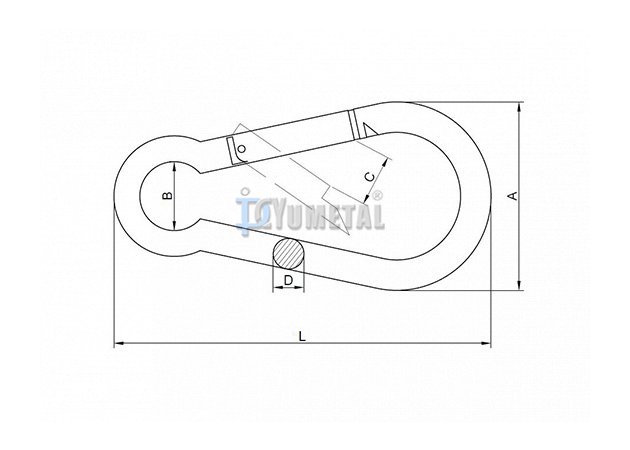

| Art. No. | Size | SWL | A | B | C | D | L | Weight |
| mm | lbs | mm | mm | mm | mm | mm | kg/100pcs | |
| SK01-4X40 | 4X40 | 100.00 | 20.00 | 6.00 | 6.00 | 4.00 | 40.00 | 0.80 |
| SK01-5X50 | 5X50 | 160.00 | 25.00 | 8.00 | 7.00 | 5.00 | 50.00 | 1.60 |
| SK01-6X60 | 6X60 | 260.00 | 30.00 | 9.00 | 7.00 | 6.00 | 60.00 | 2.80 |
| SK01-7X70 | 7X70 | 335.00 | 35.00 | 10.00 | 10.00 | 7.00 | 70.00 | 4.50 |
| SK01-8X80 | 8X80 | 400.00 | 40.00 | 11.00 | 11.00 | 8.00 | 80.00 | 6.30 |
| SK01-9X90 | 9X90 | 500.00 | 45.00 | 13.00 | 11.00 | 9.00 | 90.00 | 9.40 |
| SK01-10X100 | 10X100 | 650.00 | 50.00 | 16.00 | 12.00 | 10.00 | 100.00 | 12.50 |
| SK01-11X120 | 11X120 | 700.00 | 57.00 | 18.00 | 19.00 | 11.00 | 120.00 | 19.20 |
| SK01-12X140 | 12X140 | 800.00 | 67.00 | 20.00 | 20.00 | 12.00 | 140.00 | 25.80 |
| SK01-13X160 | 13X160 | 1300.00 | 74.00 | 22.00 | 29.00 | 13.00 | 160.00 | 35.10 |
| SK01-14X180 | 14X180 | 1600.00 | 86.00 | 22.00 | 42.00 | 14.00 | 180.00 | 44.00 |
| SK01-15X200 | 15X200 | 1800.00 | 90.00 | 26.00 | 42.00 | 15.00 | 200.00 | 58.00 |
