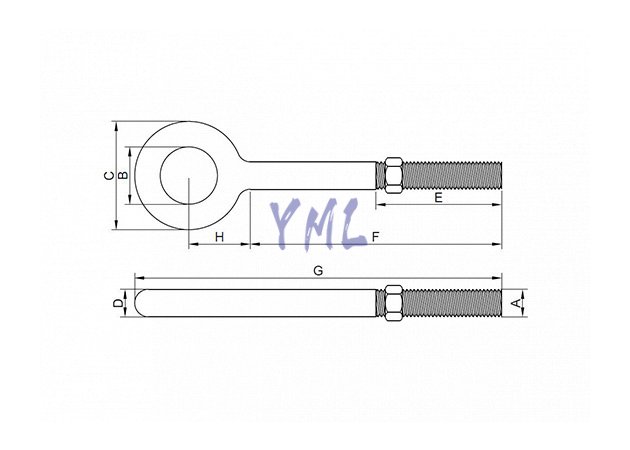

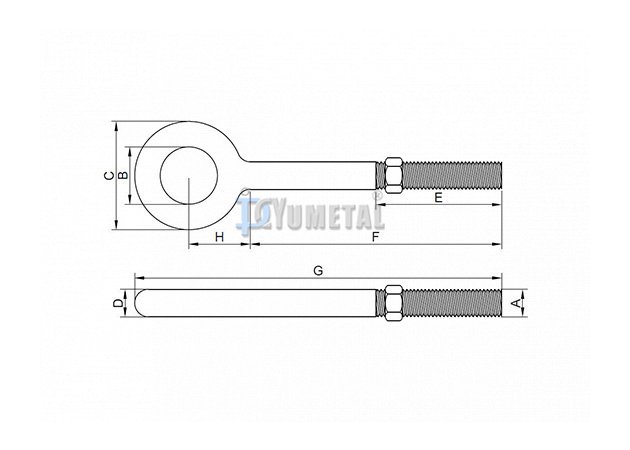

| Art No. | Size | WLL | Dimensions (inch) | Weight | |||||||
| inch | lbs | A | B | C | D | E | F | G | H | lb/100pcs | |
| EB05-1/4×2 | 1/4"×2" | 500.00 | 0.25 | 0.50 | 1.00 | 0.25 | 1.50 | 2.00 | 3.06 | 0.56 | 6.00 |
| EB05-1/4×4 | 1/4"×4" | 500.00 | 0.25 | 0.50 | 1.00 | 0.25 | 2.50 | 4.00 | 5.06 | 0.56 | 13.50 |
| EB05-5/16×2 1/4 | 5/16"×2-1/4" | 800.00 | 0.31 | 0.62 | 1.25 | 0.31 | 1.50 | 2.25 | 3.56 | 0.69 | 18.75 |
| EB05-5/16×4 1/4 | 5/16"×4-1/4" | 800.00 | 0.31 | 0.62 | 1.25 | 0.31 | 2.50 | 4.25 | 5.56 | 0.69 | 25.00 |
| EB05-3/8×2 1/2 | 3/8"×2-1/2" | 1200.00 | 0.38 | 0.75 | 1.50 | 0.38 | 1.50 | 2.50 | 4.12 | 0.88 | 24.33 |
| EB05-3/8×4 1/2 | 3/8"×4-1/2" | 1200.00 | 0.38 | 0.75 | 1.50 | 0.38 | 2.50 | 4.50 | 6.12 | 0.88 | 37.50 |
| EB05-3/8×6 | 3/8"×6" | 1200.00 | 0.38 | 0.75 | 1.50 | 0.38 | 2.50 | 6.00 | 7.62 | 0.88 | 43.75 |
| EB05-1/2×3 1/4 | 1/2"×3-1/4" | 2200.00 | 0.50 | 1.00 | 2.00 | 0.50 | 1.50 | 3.25 | 5.38 | 1.12 | 50.00 |
| EB05-1/2×6 | 1/2"×6" | 2200.00 | 0.50 | 1.00 | 2.00 | 0.50 | 3.00 | 6.00 | 8.12 | 1.12 | 62.50 |
| EB05-1/2×8 | 1/2"×8" | 2200.00 | 0.50 | 1.00 | 2.00 | 0.50 | 3.00 | 8.00 | 10.12 | 1.12 | 75.00 |
| EB05-1/2×10 | 1/2"×10" | 2200.00 | 0.50 | 1.00 | 2.00 | 0.50 | 3.00 | 10.00 | 12.12 | 1.12 | 88.00 |
| EB05-1/2×12 | 1/2"×12" | 2200.00 | 0.50 | 1.00 | 2.00 | 0.50 | 3.00 | 12.00 | 14.12 | 1.12 | 100.00 |
| EB05-5/8×4 | 5/8"×4" | 3500.00 | 0.62 | 1.25 | 2.50 | 0.62 | 2.00 | 4.00 | 6.69 | 1.44 | 101.25 |
| EB05-5/8×6 | 5/8"×6" | 3500.00 | 0.62 | 1.25 | 2.50 | 0.62 | 3.00 | 6.00 | 8.69 | 1.44 | 120.00 |
| EB05-5/8×8 | 5/8"×8" | 3500.00 | 0.62 | 1.25 | 2.50 | 0.62 | 3.00 | 8.00 | 10.69 | 1.44 | 131.00 |
| EB05-5/8×10 | 5/8"×10" | 3500.00 | 0.62 | 1.25 | 2.50 | 0.62 | 3.00 | 10.00 | 12.69 | 1.44 | 162.50 |
| EB05-5/8×12 | 5/8"×12" | 3500.00 | 0.62 | 1.25 | 2.50 | 0.62 | 4.00 | 12.00 | 14.69 | 1.44 | 175.00 |
| EB05-3/4×4 1/2 | 3/4"×4-1/2" | 5200.00 | 0.75 | 1.50 | 3.00 | 0.75 | 2.00 | 4.50 | 7.69 | 1.69 | 185.90 |
| EB05-3/4×6 | 3/4"×6" | 5200.00 | 0.75 | 1.50 | 3.00 | 0.75 | 3.00 | 6.00 | 9.19 | 1.69 | 180.00 |
| EB05-3/4×8 | 3/4"×8" | 5200.00 | 0.75 | 1.50 | 3.00 | 0.75 | 3.00 | 8.00 | 11.19 | 1.69 | 200.00 |
| EB05-3/4×10 | 3/4"×10" | 5200.00 | 0.75 | 1.50 | 3.00 | 0.75 | 3.00 | 10.00 | 13.19 | 1.69 | 237.50 |
| EB05-3/4×12 | 3/4"×12" | 5200.00 | 0.75 | 1.50 | 3.00 | 0.75 | 4.00 | 12.00 | 15.19 | 1.69 | 251.94 |
| EB05-3/4×15 | 3/4"×15" | 5200.00 | 0.75 | 1.50 | 3.00 | 0.75 | 5.00 | 15.00 | 18.19 | 1.69 | 300.00 |
| EB05-7/8×5 | 7/8"×5" | 7200.00 | 0.88 | 1.75 | 3.50 | 0.88 | 2.50 | 5.00 | 8.75 | 2.00 | 275.00 |
| EB05-7/8×8 | 7/8"×8" | 7200.00 | 0.88 | 1.75 | 3.50 | 0.88 | 4.00 | 8.00 | 11.75 | 2.00 | 325.00 |
| EB05-7/8×12 | 7/8"×12" | 7200.00 | 0.88 | 1.75 | 3.50 | 0.88 | 4.00 | 12.00 | 15.75 | 2.00 | 400.00 |
| EB05-1×6 | 1"×6" | 10000.00 | 1.00 | 2.00 | 4.00 | 1.00 | 3.00 | 6.00 | 10.31 | 2.31 | 425.00 |
| EB05-1×9 | 1"×9" | 10000.00 | 1.00 | 2.00 | 4.00 | 1.00 | 4.00 | 9.00 | 13.31 | 2.31 | 452.00 |
| EB05-1×12 | 1"×12" | 10000.00 | 1.00 | 2.00 | 4.00 | 1.00 | 4.00 | 12.00 | 16.31 | 2.31 | 550.00 |
| EB05-1×18 | 1"×18" | 10000.00 | 1.00 | 2.00 | 4.00 | 1.00 | 7.00 | 18.00 | 22.31 | 2.31 | 650.00 |
| EB05-1 1/4×8 | 1-1/4"×8" | 15200.00 | 1.25 | 2.50 | 5.00 | 1.25 | 4.00 | 8.00 | 13.38 | 2.88 | 750.00 |
| EB05-1 1/4×12 | 1-1/4"×12" | 15200.00 | 1.25 | 2.50 | 5.00 | 1.25 | 4.00 | 12.00 | 17.38 | 2.88 | 900.00 |
| EB05-1 1/4×20 | 1-1/4"×20" | 15200.00 | 1.25 | 2.50 | 5.00 | 1.25 | 6.00 | 20.00 | 25.38 | 2.88 | 1150.00 |
