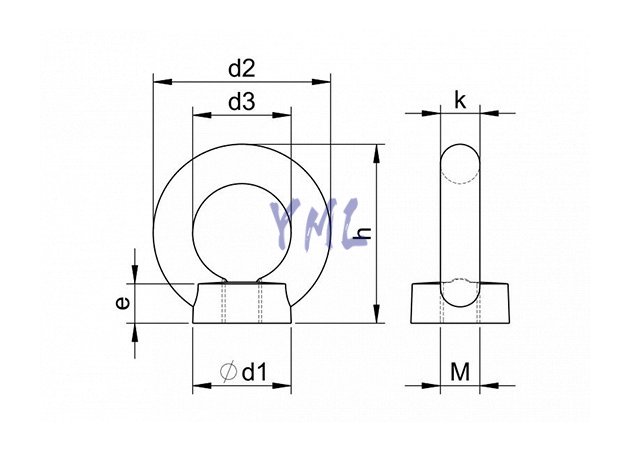

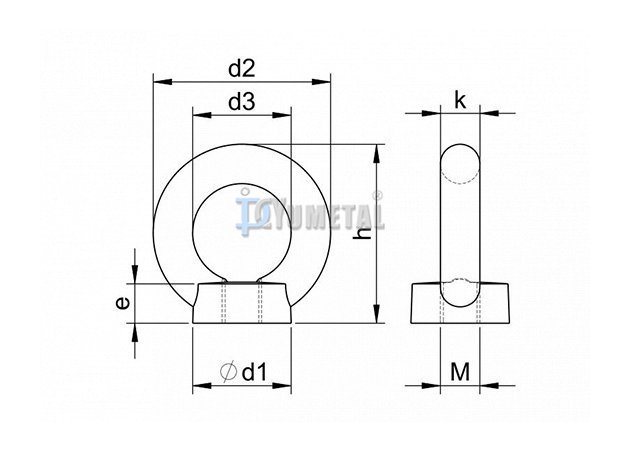

| Art No. | Size | WLL | Dimensions (mm) | Weight | |||||
| mm | Ton | d1 | d2 | d3 | e | h | k | kg/pc | |
| EB02-06 | M6 | 0.07 | 20 | 36 | 20 | 8.5 | 36 | 6 | 0.049 |
| EB02-08 | M8 | 0.14 | 20 | 36 | 20 | 8.5 | 36 | 8 | 0.05 |
| EB02-10 | M10 | 0.23 | 25 | 45 | 25 | 10 | 45 | 10 | 0.09 |
| EB02-12 | M12 | 0.34 | 30 | 54 | 30 | 11 | 53 | 12 | 0.16 |
| EB02-14 | M14 | 0.49 | 35 | 63 | 35 | 13 | 60 | 14 | 0.22 |
| EB02-16 | M16 | 0.7 | 35 | 63 | 35 | 13 | 62 | 14 | 0.24 |
| EB02-18 | M18 | 0.9 | 40 | 72 | 40 | 16 | 71 | 16 | 0.34 |
| EB02-20 | M20 | 1.2 | 40 | 72 | 40 | 16 | 71 | 16 | 0.36 |
| EB02-22 | M22 | 1.5 | 45 | 81 | 45 | 18 | 80 | 18 | 0.58 |
| EB02-24 | M24 | 1.8 | 50 | 90 | 50 | 20 | 90 | 20 | 0.72 |
| EB02-27 | M27 | 2.5 | 50 | 90 | 50 | 20 | 90 | 20 | 0.70 |
| EB02-30 | M30 | 3.6 | 65 | 108 | 60 | 25 | 109 | 24 | 1.32 |
| EB02-33 | M33 | 4.3 | 65 | 108 | 60 | 25 | 110 | 24 | 1.30 |
| EB02-36 | M36 | 5.1 | 75 | 126 | 70 | 30 | 128 | 28 | 2.08 |
| EB02-39 | M39 | 6.1 | 75 | 126 | 70 | 30 | 130 | 28 | 2.02 |
| EB02-42 | M42 | 7 | 85 | 144 | 80 | 35 | 147 | 32 | 3.11 |
| EB02-45 | M45 | 8 | 85 | 144 | 80 | 35 | 150 | 32 | 3.04 |
| EB02-48 | M48 | 8.6 | 100 | 166 | 90 | 40 | 168 | 38 | 5.02 |
| EB02-52 | M52 | 9.9 | 100 | 166 | 90 | 40 | 168 | 38 | 4.95 |
| EB02-56 | M56 | 11.5 | 110 | 184 | 100 | 45 | 187 | 42 | 6.69 |
| EB02-64 | M64 | 16 | 120 | 206 | 110 | 50 | 208 | 48 | 9.30 |
| EB02-72 | M72 | 21 | 150 | 260 | 140 | 60 | 260 | 60 | 15.00 |
