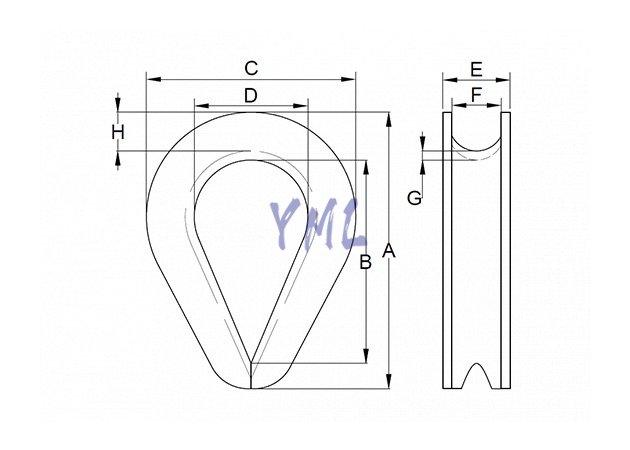

| Art No. | Size | Dimensions (inch) | Weight | |||||||
| inch | A | B | C | D | E | F | G | H | lb/100pcs | |
| TH01-1/4 | 1/4" | 2.19 | 1.63 | 1.50 | 0.88 | 0.41 | 0.28 | 0.06 | 0.23 | 6.50 |
| TH01-5/16 | 5/16" | 2.50 | 1.88 | 1.81 | 1.06 | 0.50 | 0.34 | 0.08 | 0.28 | 11.80 |
| TH01-3/8 | 3/8" | 2.88 | 2.13 | 2.13 | 1.13 | 0.63 | 0.41 | 0.11 | 0.34 | 21.60 |
| TH01-7/16 | 7/16" | 3.25 | 2.38 | 2.38 | 1.25 | 0.72 | 0.47 | 0.13 | 0.38 | 34.70 |
| TH01-1/2 | 1/2" | 3.63 | 2.75 | 2.75 | 1.50 | 0.81 | 0.53 | 0.14 | 0.41 | 51.00 |
| TH01-9/16 | 9/16" | 3.63 | 2.75 | 2.69 | 1.50 | 0.88 | 0.59 | 0.14 | 0.41 | 51.00 |
| TH01-5/8 | 5/8" | 4.25 | 3.25 | 3.13 | 1.75 | 0.97 | 0.66 | 0.16 | 0.50 | 75.70 |
| TH01-3/4 | 3/4" | 5.00 | 3.75 | 3.81 | 2.00 | 1.22 | 0.78 | 0.22 | 0.66 | 158.10 |
| TH01-7/8 | 7/8" | 5.50 | 4.25 | 4.25 | 2.25 | 1.38 | 0.94 | 0.22 | 0.75 | 177.80 |
| TH01-1 | 1" | 6.13 | 4.50 | 4.94 | 2.50 | 1.56 | 1.06 | 0.25 | 0.88 | 313.90 |
| TH01-1 1/8 | 1-1/8"-1-1/4" | 7.00 | 5.13 | 5.88 | 2.88 | 1.81 | 1.31 | 0.25 | 1.13 | 400.00 |
| TH01-1 1/4 | 1-1/4"-1-3/8" | 9.06 | 6.50 | 6.81 | 3.50 | 2.19 | 1.44 | 0.38 | 1.13 | 811.00 |
| TH01-1 3/8 | 1-3/8"-1-1/2" | 9.00 | 6.25 | 7.13 | 3.50 | 2.56 | 1.56 | 0.50 | 1.13 | 1294.80 |
| TH01-1 5/8 | 1-5/8" | 11.25 | 8.00 | 8.13 | 4.00 | 2.72 | 1.72 | 0.50 | 1.38 | 1700.00 |
| TH01-1 3/4 | 1-3/4" | 12.19 | 9.00 | 8.50 | 4.50 | 2.84 | 1.84 | 0.50 | 1.31 | 1775.00 |
| TH01-1 7/8 | 1-7/8"-2" | 15.13 | 12.00 | 10.38 | 6.00 | 3.09 | 2.09 | 0.50 | 1.50 | 2775.00 |
| TH01-2 1/4 | 2-1/4" | 17.13 | 14.00 | 11.88 | 7.00 | 3.63 | 2.38 | 0.63 | 1.63 | 3950.00 |
