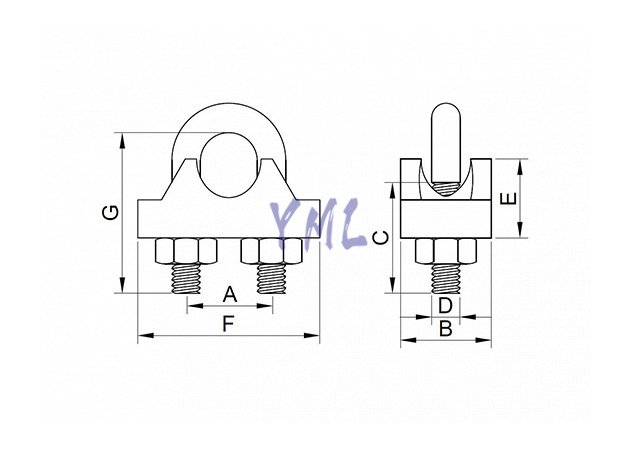

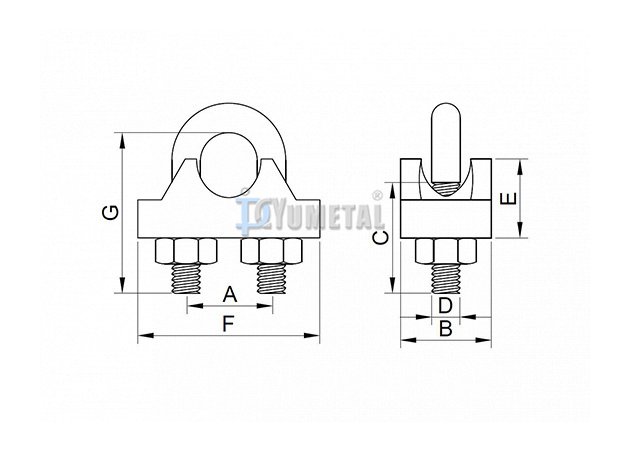

| Art No. | Size | Dimensions (mm) | Weight | ||||||
| inch | A | B | C | D | E | F | G | kg/pc | |
| CL10-1/8 | 1/8" | 9 | 9.5 | 12 | 4 | 7 | 18 | 16 | 0.008 |
| CL10-3/16 | 3/16" | 11 | 10 | 13 | 5 | 8.5 | 22 | 19 | 0.013 |
| CL10-1/4 | 1/4" | 13 | 10.5 | 15 | 5 | 10 | 24 | 23 | 0.016 |
| CL10-5/16 | 5/16" | 15.5 | 12 | 19 | 6 | 11.5 | 28 | 28 | 0.025 |
| CL10-3/8 | 3/8" | 19 | 16.5 | 22 | 8 | 13 | 32.5 | 34 | 0.053 |
| CL10-7/16 | 7/16" | 20 | 18 | 23 | 8 | 16 | 36 | 36 | 0.067 |
| CL10-1/2 | 1/2" | 24 | 20 | 30 | 10 | 18.5 | 42 | 46 | 0.110 |
| CL10-9/16 | 9/16" | 25 | 23.5 | 30 | 10 | 22.5 | 43 | 46 | 0.127 |
| CL10-5/8 | 5/8" | 29 | 26 | 34 | 12 | 25 | 48.5 | 51 | 0.192 |
| CL10-3/4 | 3/4" | 33 | 29 | 37 | 12 | 30 | 53 | 63 | 0.244 |
| CL10-7/8 | 7/8" | 36 | 31 | 44 | 12 | 33 | 57 | 74 | 0.300 |
| CL10-1 | 1" | 42 | 33 | 50 | 14 | 35 | 65 | 81 | 0.420 |
| CL10-1 1/8 | 1-1/8" | 50 | 36 | 50 | 16 | 43 | 76 | 92 | 0.550 |
| CL10-1 1/4 | 1-1/4" | 54 | 40.5 | 55 | 16 | 49 | 83 | 98 | 0.680 |
| CL10-1 1/2 | 1-1/2" | 58 | 44 | 60 | 16 | 55 | 89 | 124 | 0.800 |
| CL10-1 3/4 | 1-3/4" | 68 | 57 | 60 | 18 | 72 | 111 | 139 | 1.710 |
| CL10-2 | 2" | 75 | 61 | 90 | 18 | 72 | 118 | 157 | 1.940 |
