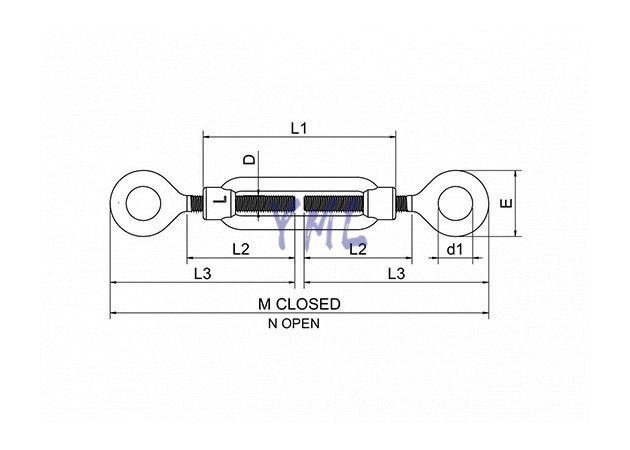

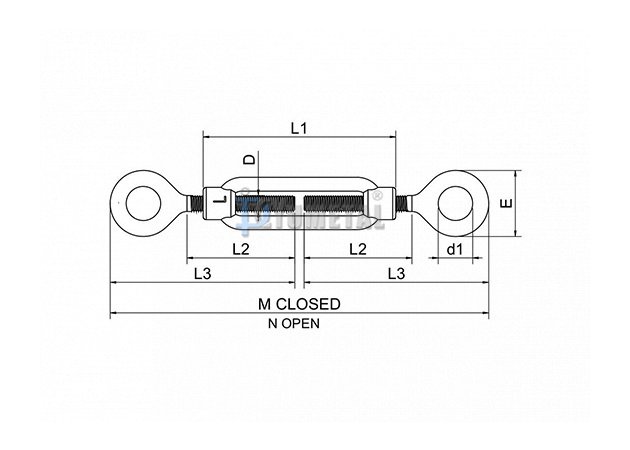

| Art No. | Size | Dimensions (mm) | Weight | |||||||
| (mm) | D | L1 | L2 | L3 | M(Close) | N(Open) | d1 | E | kg/pc | |
| TB12-05EE | 5 | 5 | 70 | 35 | 57 | 114 | 170 | 8 | 16 | 0.07 |
| TB12-06EE | 6 | 6 | 110 | 55 | 80 | 160 | 246 | 9 | 20 | 0.11 |
| TB12-08EE | 8 | 8 | 110 | 57 | 84 | 168 | 248 | 10 | 22 | 0.20 |
| TB12-10EE | 10 | 10 | 125 | 68 | 105 | 210 | 300 | 14 | 31 | 0.28 |
| TB12-12EE | 12 | 12 | 125 | 70 | 110 | 222 | 305 | 16 | 35 | 0.43 |
| TB12-14EE | 14 | 14 | 140 | 75 | 123 | 244 | 334 | 18 | 40 | 0.61 |
| TB12-16EE | 16 | 16 | 170 | 88 | 143 | 300 | 416 | 22 | 47 | 1.00 |
| TB12-20EE | 20 | 20 | 200 | 105 | 165 | 334 | 466 | 24 | 52 | 1.60 |
| TB12-22EE | 22 | 22 | 220 | 118 | 185 | 372 | 527 | 27 | 60 | 2.20 |
| TB12-24EE | 24 | 24 | 255 | 135 | 208 | 410 | 587 | 27 | 65 | 2.80 |
| TB12-30EE | 30 | 30 | 255 | 135 | 220 | 440 | 605 | 31 | 71 | 4.10 |
| TB12-36EE | 36 | 36 | 295 | 158 | 277 | 554 | 740 | 38 | 94 | 8.50 |
| TB12-42EE | 42 | 42 | 330 | 170 | 300 | 600 | 800 | 49 | 110 | 11.00 |
