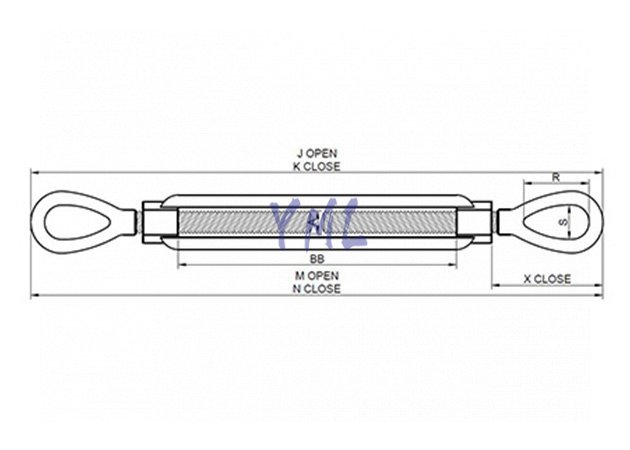

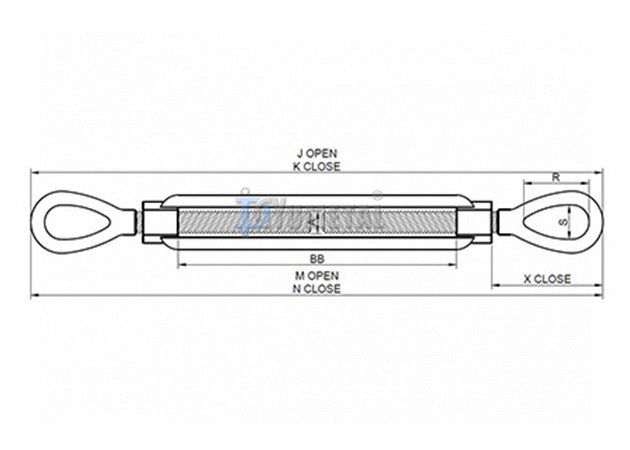

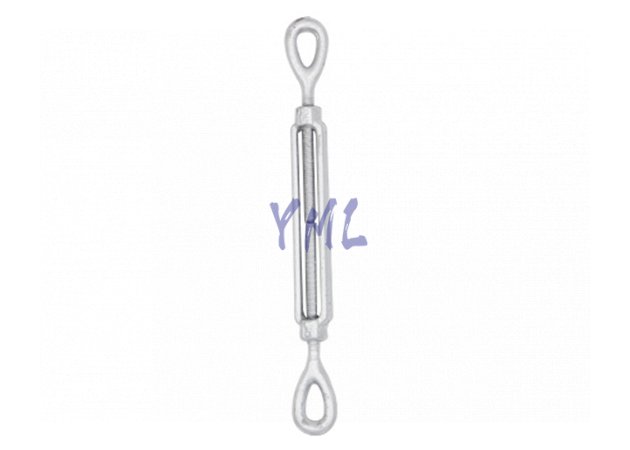

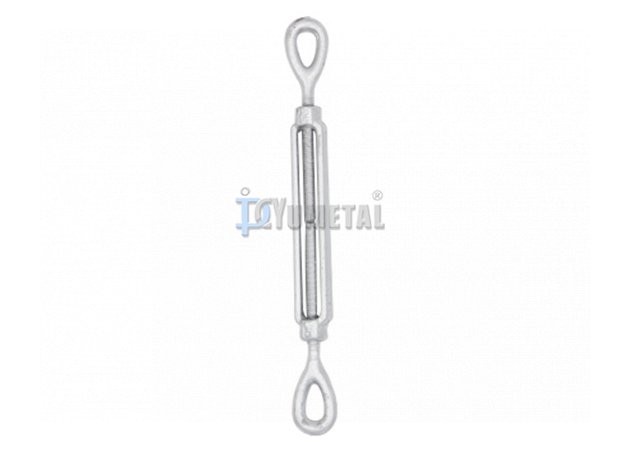

| Art No. | Size | Working Load Limit | Dimensions (in.) | Weight | ||||||||
| (inch) | (lbs) | A | J Open | K Closed | M Open | N Closed | R | S | X Closed | BB | (lbs/pc) | |
| TB05-1/4×4EE | 1/4"×4" | 500 | 0.25 | 11.80 | 7.80 | 12.25 | 8.25 | 0.78 | 0.34 | 1.75 | 4.00 | 0.26 |
| TB05-5/16×4-1/2EE | 5/16"×4-1/2" | 800 | 0.31 | 13.56 | 9.06 | 14.12 | 9.62 | 0.94 | 0.44 | 2.09 | 4.50 | 0.45 |
| TB05-3/8×6EE | 3/8"×6" | 1200 | 0.38 | 17.47 | 11.47 | 18.16 | 12.16 | 1.12 | 0.53 | 2.52 | 6.00 | 0.76 |
| TB05-1/2×6EE | 1/2"×6" | 2200 | 0.44 | 20.08 | 13.08 | 20.96 | 13.96 | 1.42 | 0.72 | 3.23 | 6.00 | 1.54 |
| TB05-1/2×9EE | 1/2"×9" | 2200 | 0.50 | 26.08 | 16.08 | 26.96 | 16.96 | 1.42 | 0.72 | 3.23 | 9.00 | 1.13 |
| TB05-1/2×12EE | 1/2"×12" | 2200 | 0.50 | 32.08 | 19.08 | 32.96 | 19.96 | 1.42 | 0.72 | 3.23 | 12.00 | 2.14 |
| TB05-5/8×6EE | 5/8"×6" | 3500 | 0.50 | 21.93 | 14.68 | 22.93 | 15.68 | 1.80 | 0.88 | 3.90 | 6.00 | 3.28 |
| TB05-5/8×9EE | 5/8"×9" | 3500 | 0.63 | 27.93 | 17.68 | 28.93 | 18.68 | 1.80 | 0.88 | 3.90 | 9.00 | 2.83 |
| TB05-5/8×12EE | 5/8"×12" | 3500 | 0.63 | 33.93 | 20.68 | 34.93 | 21.68 | 1.80 | 0.88 | 3.90 | 12.00 | 3.42 |
| TB05-3/4×6EE | 3/4"×6" | 5200 | 0.75 | 23.88 | 16.38 | 25.12 | 17.62 | 2.09 | 1.00 | 4.69 | 6.00 | 3.79 |
| TB05-3/4×9EE | 3/4"×9" | 5200 | 0.75 | 29.88 | 19.38 | 31.12 | 20.62 | 2.09 | 1.00 | 4.69 | 9.00 | 4.61 |
| TB05-3/4×12EE | 3/4"×12" | 5200 | 0.75 | 35.88 | 22.38 | 37.12 | 23.62 | 2.09 | 1.00 | 4.69 | 12.00 | 5.48 |
| TB05-3/4×18EE | 3/4"×18" | 5200 | 0.75 | 47.88 | 28.38 | 49.12 | 29.62 | 2.09 | 1.00 | 4.69 | 18.00 | 7.19 |
| TB05-7/8×12EE | 7/8"×12" | 7200 | 0.88 | 37.07 | 23.63 | 38.57 | 24.82 | 2.38 | 1.25 | 5.10 | 12.00 | 7.22 |
| TB05-7/8×18EE | 7/8"×18" | 7200 | 0.88 | 49.07 | 29.32 | 50.57 | 30.82 | 2.38 | 1.25 | 5.10 | 18.00 | 9.95 |
| TB05-1×6EE | 1"×6" | 10000 | 1.00 | 27.97 | 19.97 | 29.72 | 21.72 | 3.00 | 1.44 | 6.36 | 6.00 | 9.04 |
| TB05-1×12EE | 1"×12" | 10000 | 1.00 | 39.97 | 25.97 | 41.97 | 27.72 | 3.00 | 1.44 | 6.36 | 12.00 | 11.50 |
| TB05-1×18EE | 1"×18" | 10000 | 1.00 | 51.97 | 31.97 | 53.72 | 33.72 | 3.00 | 1.44 | 6.36 | 18.00 | 14.00 |
| TB05-1×24EE | 1"×24" | 10000 | 1.00 | 63.97 | 37.97 | 65.72 | 39.72 | 3.00 | 1.44 | 6.36 | 6.00 | 17.25 |
| TB05-1-1/4×12EE | 1-1/4"×12" | 15200 | 1.25 | 42.81 | 28.31 | 45.06 | 30.56 | 3.56 | 1.81 | 7.72 | 12.00 | 19.00 |
| TB05-1-1/4×18EE | 1-1/4×18" | 15200 | 1.25 | 54.81 | 34.31 | 57.06 | 36.56 | 3.56 | 1.81 | 7.72 | 18.00 | 23.00 |
| TB05-1-1/4×24EE | 1-1/4"×24" | 15200 | 1.25 | 66.81 | 40.31 | 69.06 | 42.56 | 3.56 | 1.81 | 7.72 | 24.00 | 27.00 |
| TB05-1-1/2×12EE | 1-1/2"×12" | 21400 | 1.50 | 45.50 | 30.50 | 48.00 | 33.00 | 4.06 | 2.12 | 8.62 | 12.00 | 27.50 |
| TB05-1-1/2×18EE | 1-1/2"×18" | 21400 | 1.50 | 57.50 | 36.50 | 60.00 | 39.00 | 4.06 | 2.12 | 8.62 | 18.00 | 31.00 |
| TB05-1-1/2×24EE | 1-1/2"×24" | 21400 | 1.50 | 69.50 | 42.50 | 72.00 | 45.00 | 4.06 | 2.12 | 8.62 | 24.00 | 37.50 |
| TB05-1-3/4×18EE | 1-3/4"×18" | 28000 | 1.75 | 57.38 | 39.38 | 60.38 | 42.38 | 4.62 | 2.38 | 10.00 | 18.00 | 52.50 |
| TB05-1-3/4×24EE | 1-3/4"×24" | 28000 | 1.75 | 69.38 | 45.38 | 72.38 | 48.38 | 4.62 | 2.38 | 10.00 | 24.00 | 58.00 |
| TB05-2×24EE | 2"×24" | 37000 | 2.00 | 75.69 | 51.69 | 79.19 | 55.19 | 5.75 | 2.69 | 13.09 | 24.00 | 85.25 |
| TB05-2-1/2×24EE | 2-1/2"×24" | 60000 | 2.50 | 78.62 | 54.62 | 82.62 | 58.62 | 6.50 | 3.12 | 13.78 | 24.00 | 144.25 |
| TB05-2-3/4×24EE | 2-3/4"×24" | 75000 | 2.75 | 81.00 | 57.00 | 85.50 | 61.50 | 7.00 | 3.25 | 15.22 | 24.00 | 194.00 |
