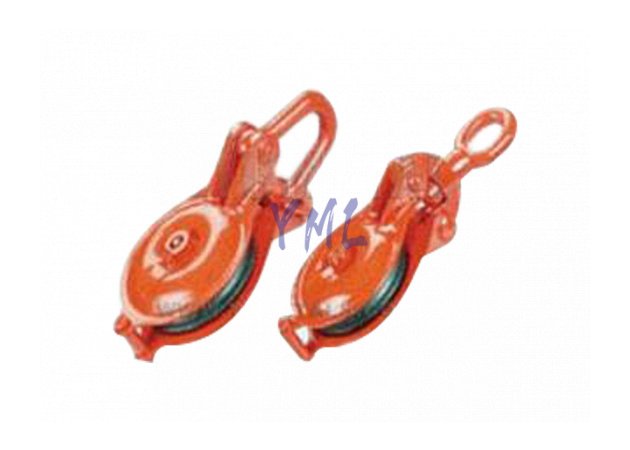

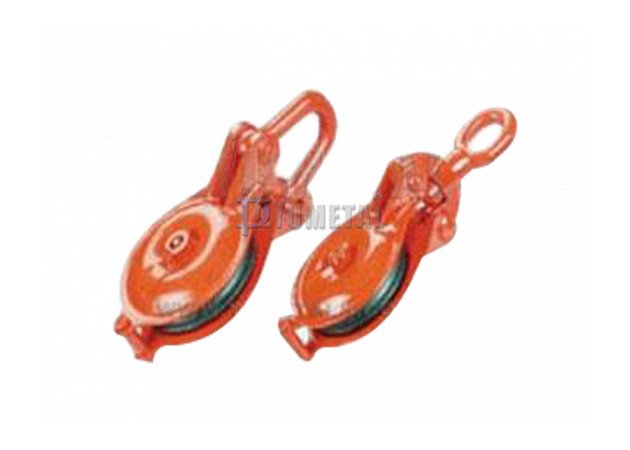

| Art No. | WLL | Sheave Dia | A | B | C | D | Wire Rope | Weight |
| Ton | mm | mm | mm | mm | mm | mm | kg/pc | |
| BL05-075shackle | 0.50 | 75.00 | 230.00 | 85.00 | 26.00 | 12.00 | 8.00 | 1.50 |
| BL05-100shackle | 1.00 | 100.00 | 285.00 | 121.00 | 34.00 | 16.00 | 8.00 | 1.90 |
| BL05-125shackle | 1.50 | 125.00 | 346.00 | 145.00 | 38.00 | 18.00 | 9.00 | 3.60 |
| BL05-150shackle | 2.00 | 150.00 | 419.00 | 180.00 | 41.00 | 22.00 | 12.00 | 6.00 |
| BL05-200shackle | 4.00 | 200.00 | 517.00 | 225.00 | 46.00 | 28.00 | 16.00 | 12.50 |
| BL05-250shackle | 5.00 | 250.00 | 655.00 | 275.00 | 60.00 | 28.00 | 22.00 | 16.00 |
| BL05-075ring | 0.50 | 75.00 | 230.00 | 85.00 | 50.00 | 12.00 | 8.00 | 2.10 |
| BL05-100ring | 1.00 | 100.00 | 285.00 | 121.00 | 61.00 | 16.00 | 8.00 | 3.00 |
| BL05-125ring | 1.50 | 125.00 | 335.00 | 145.00 | 73.00 | 18.00 | 9.00 | 5.90 |
| BL05-150ring | 2.00 | 150.00 | 365.00 | 180.00 | 83.00 | 22.00 | 12.00 | 9.00 |
| BL05-200ring | 4.00 | 200.00 | 517.00 | 225.00 | 93.00 | 28.00 | 16.00 | 17.50 |
| BL05-250ring | 5.00 | 250.00 | 600.00 | 275.00 | 115.00 | 28.00 | 22.00 | 28.60 |
