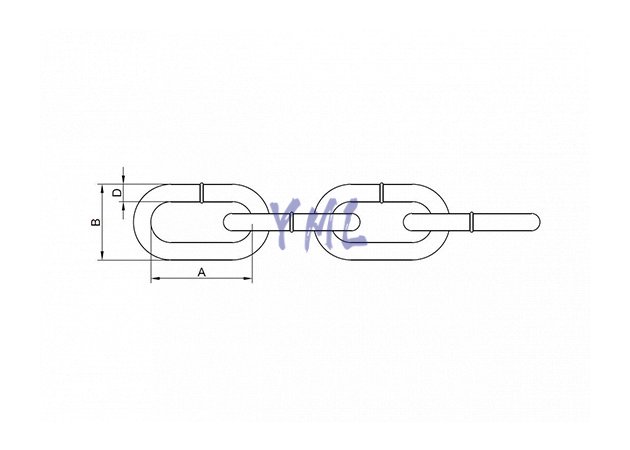

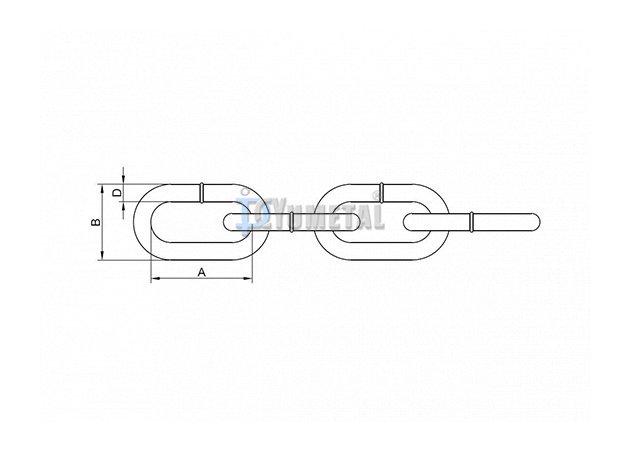

| Art No. | Chain Size | Working Load | Link Dimension | Links Per M | Length Per 100kg | |||
| Dia | Inside Length | Outside Width | B.F. | H.D.G | ||||
| mm | MT | mm | mm | mm | PC | m | m | |
| CH22-03 | 3 | 0.05 | 3.15 | 22.1 | 15.7 | 45.3 | 555 | 526 |
| CH22-04 | 4 | 0.09 | 4.00 | 25.4 | 18.6 | 39.3 | 345 | 323 |
| CH22-05 | 5 | 0.19 | 5.00 | 29.3 | 21.8 | 34.1 | 217 | 206 |
| CH22-06 | 6 | 0.32 | 6.30 | 34.5 | 26.1 | 29.0 | 135 | 128 |
| CH22-08 | 8 | 0.53 | 8.00 | 41.2 | 31.9 | 24.3 | 82.2 | 78.1 |
| CH22-10 | 10 | 0.83 | 10.00 | 49.0 | 38.7 | 20.4 | 52.9 | 50.2 |
