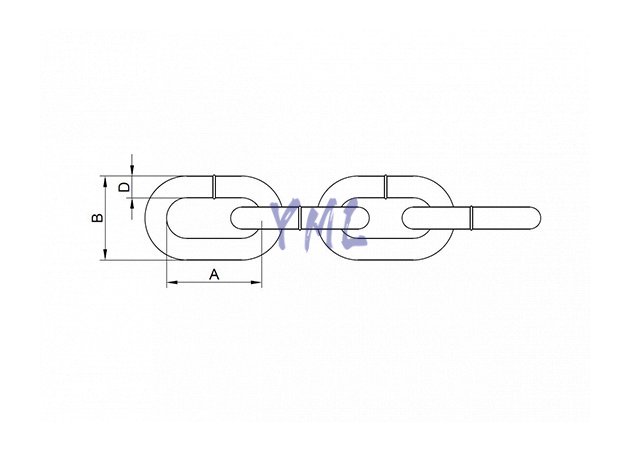

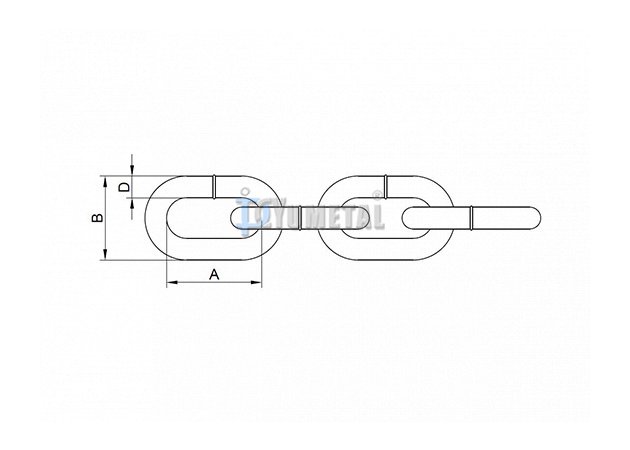

| Art No. | Chain Size | Working Load | Link Dimension | Links Per M | Length Per 100kg | |||
| Dia | Inside Length | Outside Width | B.F. | H.D.G | ||||
| mm | MT | mm | mm | mm | PC | m | m | |
| CH21-03 | 3 | 0.06 | 3.15 | 15.7 | 13.1 | 63.8 | 511 | 498 |
| CH21-04 | 4 | 0.11 | 4.00 | 18.6 | 16.0 | 53.9 | 320 | 305 |
| CH21-05 | 5 | 0.19 | 5.00 | 22.0 | 19.4 | 45.4 | 203 | 193 |
| CH21-06 | 6 | 0.32 | 6.30 | 26.1 | 23.5 | 37.8 | 129 | 120 |
| CH21-08 | 8 | 0.53 | 8.00 | 32.2 | 29.5 | 31.0 | 77.8 | 74.1 |
| CH21-10 | 10 | 0.83 | 10.00 | 39.1 | 36.2 | 25.0 | 48.5 | 47.1 |
| CH21-12 | 12 | 1.35 | 12.00 | 46.0 | 44.0 | 21.7 | 34 | 33.3 |
| CH21-13 | 13 | 1.50 | 13.00 | 49.1 | 46.1 | 20.3 | 29.7 | 27.7 |
| CH21-16 | 16 | 2.31 | 16.00 | 59.6 | 56.5 | 16.8 | 20.2 | 18.2 |
| CH21-20 | 20 | 3.67 | 20.00 | 73.3 | 70.0 | 13.6 | 12.3 | 11.6 |
| CH21-24 | 24 | 5.31 | 24.00 | 87.0 | 83.6 | 11.5 | 8.5 | 8.04 |
