| Art No. | Nominal Diameter | Nominal Tensile Strength | Approx. Weight | ||||
| 1570N/mm2 | 1770N/mm2 | ||||||
| Minimum Breaking Strength(KN) | kg/m | ||||||

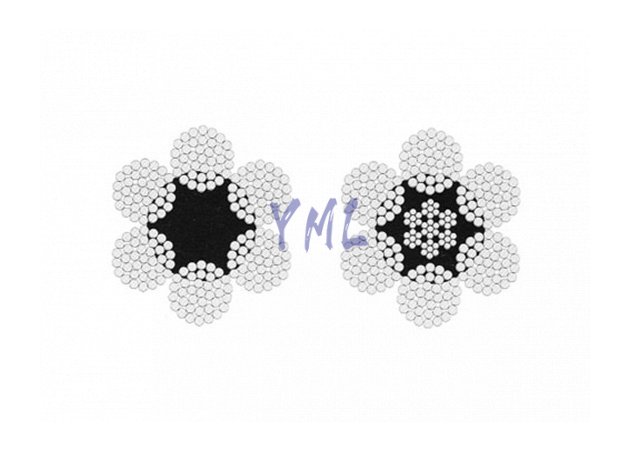

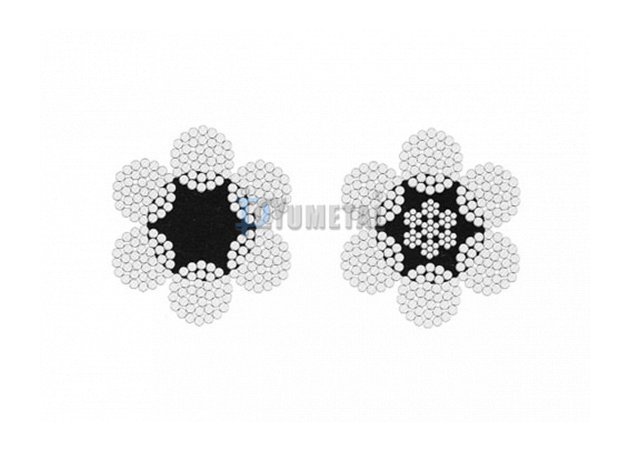

| mm | FC | IWSC | FC | IWSC | FC | WSC | |
| WP07-6 | 6 | - | - | 18.8 | 20.3 | 0.125 | 0.137 |
| WP07-7 | 7 | - | - | 25.6 | 27.6 | 0.170 | 0.186 |
| WP07-8 | 8 | 29.6 | 32.0 | 33.4 | 36.1 | 0.221 | 0.244 |
| WP07-9 | 9 | 37.5 | 40.5 | 42.3 | 45.7 | 0.280 | 0.308 |
| WP07-10 | 10 | 46.3 | 50.0 | 52.2 | 56.4 | 0.346 | 0.381 |
| WP07-11 | 11 | 56.0 | 60.5 | 63.1 | 68.2 | 0.419 | 0.461 |
| WP07-12 | 12 | 66.6 | 72.0 | 75.1 | 81.2 | 0.498 | 0.548 |
| WP07-13 | 13 | 78.2 | 84.5 | 88.2 | 95.2 | 0.585 | 0.643 |
| WP07-14 | 14 | 90.7 | 98.0 | 102.0 | 112.0 | 0.678 | 0.746 |
| WP07-16 | 16 | 118.0 | 128.0 | 134.0 | 144.0 | 0.886 | 0.974 |
| WP07-18 | 18 | 150.0 | 162.0 | 169.0 | 183.0 | 1.120 | 1.230 |
| WP07-20 | 20 | 185.0 | 200.0 | 209.0 | 225.0 | 1.380 | 1.520 |
| WP07-22 | 22 | 224.0 | 242.0 | 253.0 | 273.0 | 1.670 | 1.840 |
| WP07-24 | 24 | 267.0 | 288.0 | 301.0 | 325.0 | 1.990 | 2.190 |
| WP07-26 | 26 | 313.0 | 338.0 | 353.0 | 381.0 | 2.340 | 2.570 |
| WP07-28 | 28 | 363.0 | 392.0 | 409.0 | 442.0 | 2.710 | 2.980 |
| WP07-32 | 32 | 474.0 | 512.0 | 534.0 | 577.0 | 3.540 | 3.900 |
| WP07-36 | 36 | 600.0 | 648.0 | 676.0 | 731.0 | 4.480 | 4.930 |
| WP07-40 | 40 | 741.0 | 800.0 | 835.0 | 902.0 | 5.540 | 6.090 |
| WP07-44 | 44 | 986.0 | 968.0 | 1011.0 | 1091.0 | 6.700 | 7.370 |
