| Art No. | Nominal Diameter | Nominal Tensile Strength | Approx. Weight | ||||
| 1570N/mm2 | 1770N/mm2 | ||||||
| Minimum Breaking Strength(KN) | kg/m | ||||||

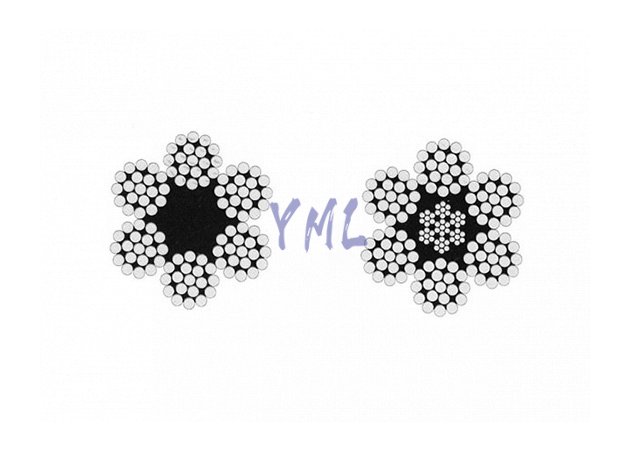

| mm | FC | WSC | FC | WSC | FC | WSC | |
| WP03-3 | 3 | - | - | 4.90 | 5.29 | 0.0311 | 0.0342 |
| WP03-4 | 4 | - | - | 8.70 | 9.40 | 0.0554 | 0.0609 |
| WP03-5 | 5 | - | - | 13.60 | 14.70 | 0.0865 | 0.0952 |
| WP03-6 | 6 | - | - | 19.60 | 21.20 | 0.1250 | 0.1380 |
| WP03-7 | 7 | - | - | 26.70 | 28.80 | 0.1700 | 0.1870 |
| WP03-8 | 8 | 30.9 | 33.3 | 34.80 | 37.60 | 0.2210 | 0.2430 |
| WP03-9 | 9 | 39.1 | 42.2 | 44.10 | 47.60 | 0.2800 | 0.3080 |
| WP03-10 | 10 | 48.2 | 52.1 | 54.40 | 58.80 | 0.3460 | 0.3810 |
| WP03-11 | 11 | 58.4 | 63.1 | 65.80 | 71.10 | 0.4190 | 0.4610 |
| WP03-12 | 12 | 69.5 | 75.0 | 78.30 | 84.60 | 0.4980 | 0.5480 |
| WP03-13 | 13 | 81.5 | 88.1 | 91.90 | 99.30 | 0.5850 | 0.6430 |
| WP03-14 | 14 | 94.6 | 102.0 | 107.00 | 115.00 | 0.6780 | 0.7460 |
| WP03-16 | 16 | 124.0 | 133.0 | 139.00 | 150.00 | 0.8860 | 0.9740 |
| WP03-18 | 18 | 156.0 | 169.0 | 176.00 | 190.00 | 1.1200 | 1.2300 |
| WP03-20 | 20 | 193.0 | 208.0 | 218.00 | 235.00 | 1.3800 | 1.5200 |
| WP03-22 | 22 | 234.0 | 252.0 | 263.00 | 284.00 | 1.6700 | 1.8400 |
| WP03-24 | 24 | 278.0 | 300.0 | 313.00 | 338.00 | 1.9900 | 2.1900 |
| WP03-26 | 26 | 326.0 | 352.0 | 368.00 | 397.00 | 2.3400 | 2.5700 |
| WP03-28 | 28 | 378.0 | 409.0 | 426.00 | 461.00 | 2.7100 | 2.9800 |
| WP03-32 | 32 | 494.0 | 534.0 | 557.00 | 602.00 | 3.5400 | 3.9000 |
| WP03-36 | 36 | 625.0 | 675.0 | 705.00 | 761.00 | 4.4800 | 4.9300 |
