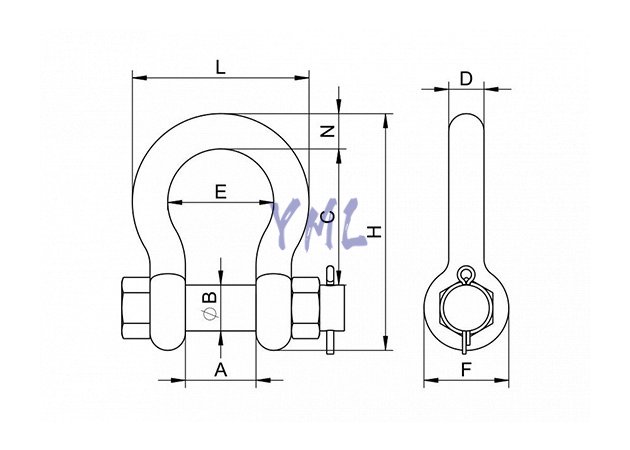

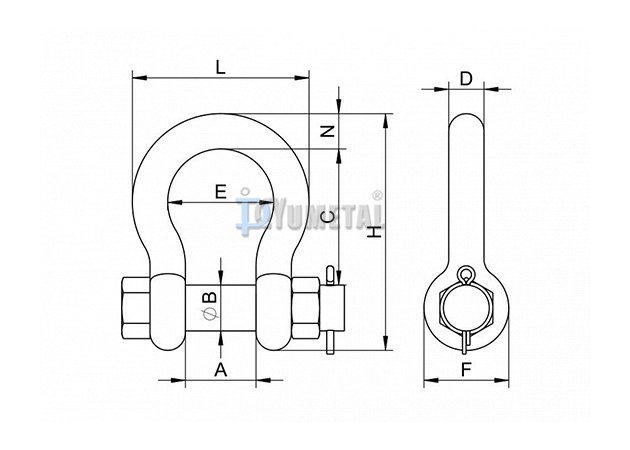

| Art No. | Size | Working Load Limit | Dimensions (inch) | Tolerance(+/-) | Weight | |||||||||
| (inch) | (ton) | A | B | C | D | E | F | H | L | N | C | A | (lbs/pc) | |
| SH07-3/16 | 3/16" | 1/3 | 0.38 | 0.25 | 0.88 | 0.19 | 0.60 | 0.56 | 1.47 | 0.98 | 0.19 | 0.06 | 0.06 | 0.06 |
| SH07-1/4 | 1/4" | 1/2 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | 1.84 | 1.28 | 0.25 | 0.06 | 0.06 | 0.11 |
| SH07-5/16 | 5/16" | 3/4 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | 2.09 | 1.47 | 0.31 | 0.06 | 0.06 | 0.22 |
| SH07-3/8 | 3/8" | 1 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 2.49 | 1.78 | 0.38 | 0.13 | 0.06 | 0.33 |
| SH07-7/16 | 7/16" | 1-1/2 | 0.75 | 0.5 | 1.69 | 0.44 | 1.16 | 1.06 | 2.91 | 2.03 | 0.44 | 0.13 | 0.06 | 0.49 |
| SH07-1/2 | 1/2" | 2 | 0.81 | 0.64 | 1.88 | 0.5 | 1.31 | 1.19 | 3.28 | 2.31 | 0.5 | 0.13 | 0.06 | 0.79 |
| SH07-5/8 | 5/8" | 3-1/4 | 1.06 | 0.77 | 2.38 | 0.63 | 1.69 | 1.5 | 4.19 | 2.94 | 0.69 | 0.13 | 0.06 | 1.68 |
| SH07-3/4 | 3/4" | 4-3/4 | 1.25 | 0.89 | 2.81 | 0.75 | 2.00 | 1.81 | 4.97 | 3.5 | 0.81 | 0.25 | 0.06 | 2.72 |
| SH07-7/8 | 7/8" | 6-1/2 | 1.44 | 1.02 | 3.31 | 0.88 | 2.28 | 2.09 | 5.83 | 4.03 | 0.97 | 0.25 | 0.06 | 3.95 |
| SH07-1 | 1" | 8-1/2 | 1.69 | 1.15 | 3.75 | 1 | 2.69 | 2.38 | 6.56 | 4.69 | 1.06 | 0.25 | 0.06 | 5.66 |
| SH07-1-1/8 | 1-1/8" | 9-1/2 | 1.81 | 1.25 | 4.25 | 1.13 | 2.91 | 2.69 | 7.47 | 5.16 | 1.25 | 0.25 | 0.06 | 8.27 |
| SH07-1-1/4 | 1-1/4" | 12 | 2.03 | 1.4 | 4.69 | 1.29 | 3.25 | 3 | 8.25 | 5.75 | 1.38 | 0.25 | 0.06 | 11.71 |
| SH07-1-3/8 | 1-3/8" | 13-1/2 | 2.25 | 1.53 | 5.25 | 1.42 | 3.63 | 3.31 | 9.16 | 6.38 | 1.5 | 0.25 | 0.13 | 15.83 |
| SH07-1-1/2 | 1-1/2" | 17 | 2.38 | 1.66 | 5.75 | 1.53 | 3.88 | 3.63 | 10 | 6.88 | 1.62 | 0.25 | 0.13 | 19 |
| SH07-1-3/4 | 1-3/4" | 25 | 2.88 | 2.04 | 7.00 | 1.84 | 5.00 | 4.19 | 12.34 | 8.8 | 2.25 | 0.25 | 0.13 | 33.91 |
| SH07-2 | 2" | 35 | 3.25 | 2.3 | 7.75 | 2.08 | 5.75 | 4.81 | 13.68 | 10.15 | 2.4 | 0.25 | 0.13 | 52.25 |
| SH07-2-1/2 | 2-1/2" | 55 | 4.13 | 2.8 | 10.50 | 2.71 | 7.25 | 5.69 | 17.9 | 12.75 | 3.13 | 0.25 | 0.25 | 98.25 |
| SH07-3 | 3" | 85 | 5 | 3.3 | 13.00 | 3.12 | 7.88 | 6.5 | 21.5 | 14.62 | 3.62 | 0.25 | 0.25 | 154 |
| SH07-3-1/2 | 3-1/2" | 120 | 5.25 | 3.76 | 14.63 | 3.62 | 9.00 | 8 | 24.88 | 17.02 | 4.38 | 0.25 | 0.25 | 265 |
| SH07-4 | 4" | 150 | 5.5 | 4.26 | 14.50 | 4 | 10.00 | 9 | 25.68 | 18 | 4.56 | 0.25 | 0.25 | 338 |
