SH06

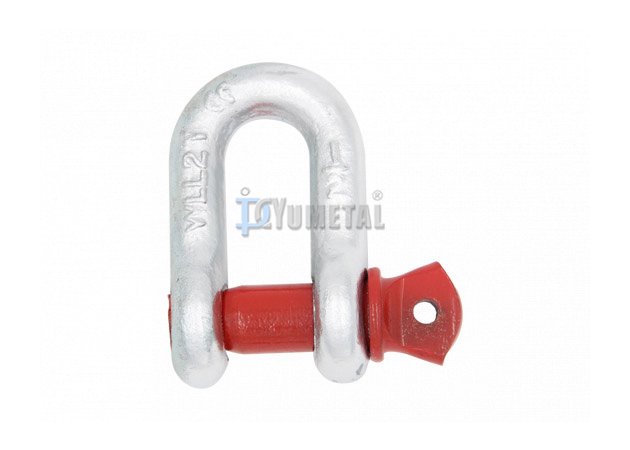

SH06 Screw Pin Chain Shackle,U.S.Type G210,Drop Forged

Inquiry Now Add to cart

Technical parameters

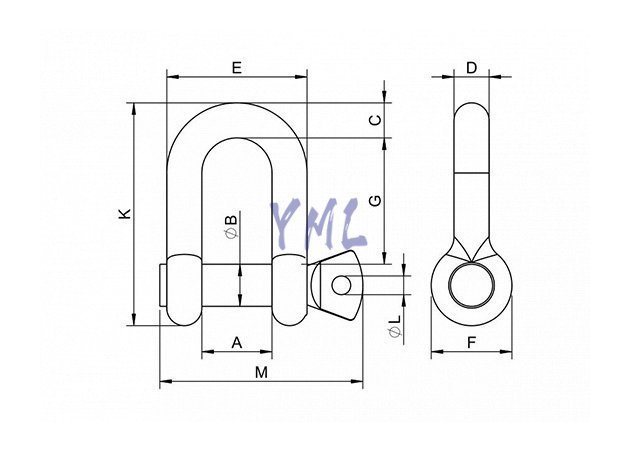

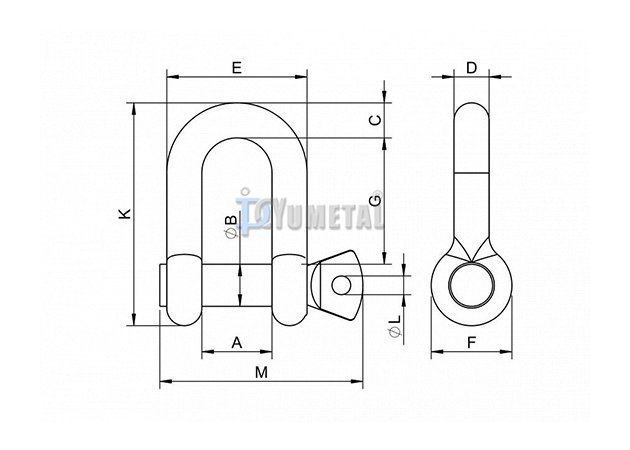

Art No.	Size	Working Load Limit	Dimensions (inch)										Tolerance(+/-)		Weight
	(inch)	(ton)	A	B	C	D	E	F	G	K	L	M	G	A	(lbs/pc)
SH06-3/16	3/16"	1/3	0.37	0.24	0.22	0.22	0.83	0.57	0.74	1.36	0.14	1.19	0.06	0.06	0.05
SH06-1/4	1/4"	1/2	0.47	0.31	0.25	0.25	0.97	0.62	0.97	1.59	0.19	1.43	0.06	0.06	0.11
SH06-5/16	5/16"	3/4	0.53	0.38	0.31	0.31	1.15	0.75	1.07	1.91	0.22	1.71	0.06	0.06	0.17
SH06-3/8	3/8"	1	0.66	0.44	0.38	0.38	1.42	0.92	1.28	2.31	0.25	2.02	0.13	0.06	0.28
SH06-7/16	7/16"	1-1/2	0.75	0.5	0.44	0.44	1.63	1.06	1.48	2.67	0.31	2.37	0.13	0.06	0.43
SH06-1/2	1/2"	2	0.81	0.63	0.5	0.5	1.81	1.18	1.66	3.03	0.38	2.69	0.13	0.06	0.59
SH06-5/8	5/8"	3-1/4	1.06	0.75	0.63	0.63	2.32	1.5	2.04	3.76	0.44	3.34	0.13	0.06	1.25
SH06-3/4	3/4"	4-3/4	1.25	0.88	0.81	0.75	2.75	1.81	2.4	4.53	0.5	3.97	0.25	0.06	2.63
SH06-7/8	7/8"	6-1/2	1.44	1	0.97	0.88	3.2	2.1	2.86	5.33	0.5	4.5	0.25	0.06	3.16
SH06-1	1"	8-1/2	1.69	1.13	1	1	3.69	2.38	3.24	5.94	0.56	5.13	0.25	0.06	4.75
SH06-1 1/8	1-1/8"	9-1/2	1.81	1.25	1.25	1.13	4.07	2.69	3.61	6.78	0.63	5.71	0.25	0.06	6.75
SH06-1 1/4	1-1/4"	12	2.03	1.38	1.38	1.25	4.53	3	3.97	7.5	0.69	6.25	0.25	0.13	9.06
SH06-1 3/8	1-3/8"	13-1/2	2.25	1.5	1.5	1.38	5.01	3.31	4.43	8.28	0.75	6.83	0.25	0.13	11.63
SH06-1 1/2	1-1/2"	17	2.38	1.63	1.62	1.5	5.38	3.62	4.84	9.05	0.81	7.33	0.25	0.13	15.95
SH06-1 3/4	1-3/4"	25	2.88	2	2.12	1.75	6.38	4.19	5.78	10.97	1	9.06	0.25	0.13	26.75
SH06-2	2"	35	3.25	2.25	2.36	2.1	7.25	5	6.77	12.74	1.13	10.35	0.25	0.13	42.31
SH06-2 1/2	2-1/2"	55	4.12	2.75	2.63	2.63	9.38	5.68	8.07	14.85	1.38	13	0.25	0.25	71.75
