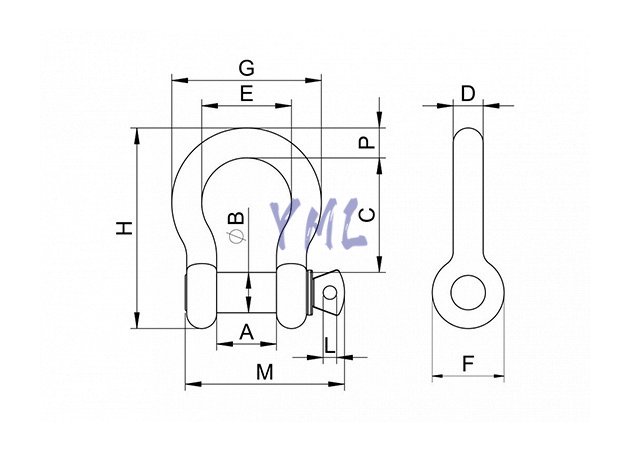

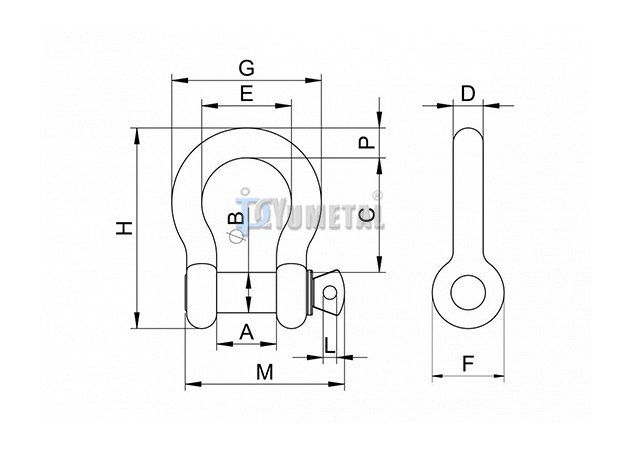

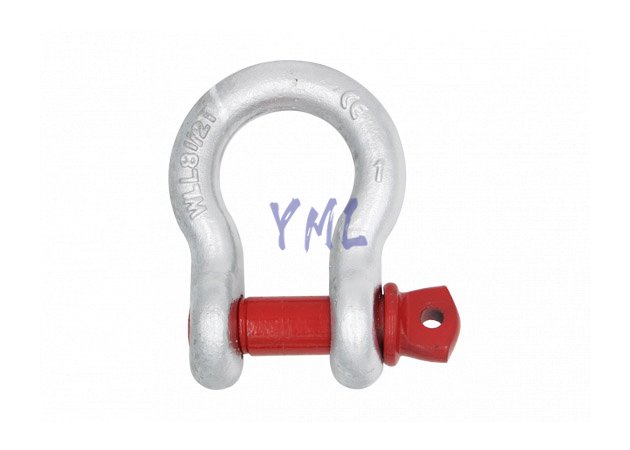

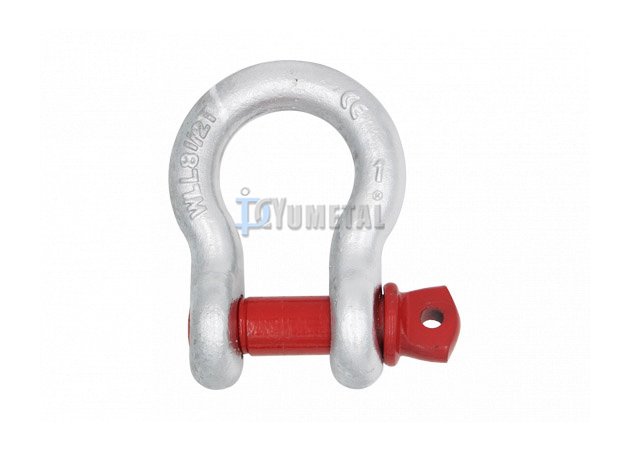

| Art No. | Size | Working Load Limit | Dimensions (inch) | Tolerance(+/-) | Weight | |||||||||||
| (inch) | (ton) | A | B | C | D | E | F | G | H | L | M | P | C | A | (lbs/pc) | |
| SH05-3/16 | 3/16" | 1/3 | 0.38 | 0.25 | 0.88 | 0.19 | 0.6 | 0.56 | 0.98 | 1.47 | 0.16 | 1.14 | 0.19 | 0.06 | 0.06 | 0.06 |
| SH05-1/4 | 1/4" | 1/2 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | 1.28 | 1.84 | 0.19 | 1.43 | 0.25 | 0.06 | 0.06 | 0.1 |
| SH05-5/16 | 5/16" | 3/4 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | 1.47 | 2.09 | 0.22 | 1.71 | 0.31 | 0.06 | 0.06 | 0.19 |
| SH05-3/8 | 3/8" | 1 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 1.78 | 2.49 | 0.25 | 2.02 | 0.38 | 0.13 | 0.06 | 0.31 |
| SH05-7/16 | 7/16" | 1-1/2 | 0.75 | 0.5 | 1.69 | 0.44 | 1.16 | 1.06 | 2.03 | 2.91 | 0.31 | 2.37 | 0.44 | 0.13 | 0.06 | 0.38 |
| SH05-1/2 | 1/2" | 2 | 0.81 | 0.63 | 1.88 | 0.5 | 1.31 | 1.19 | 2.31 | 3.28 | 0.38 | 2.69 | 0.5 | 0.13 | 0.06 | 0.72 |
| SH05-5/8 | 5/8" | 3-1/4 | 1.06 | 0.75 | 2.38 | 0.63 | 1.69 | 1.5 | 2.94 | 4.19 | 0.44 | 3.34 | 0.69 | 0.13 | 0.06 | 1.37 |
| SH05-3/4 | 3/4" | 4-3/4 | 1.25 | 0.88 | 2.81 | 0.75 | 2 | 1.81 | 3.5 | 4.97 | 0.5 | 3.97 | 0.81 | 0.25 | 0.06 | 2.35 |
| SH05-7/8 | 7/8" | 6-1/2 | 1.44 | 1 | 3.31 | 0.88 | 2.28 | 2.09 | 4.03 | 5.83 | 0.5 | 4.5 | 0.97 | 0.25 | 0.06 | 3.62 |
| SH05-1 | 1" | 8-1/2 | 1.69 | 1.13 | 3.75 | 1 | 2.69 | 2.38 | 4.69 | 6.56 | 0.56 | 5.13 | 1.06 | 0.25 | 0.06 | 5.03 |
| SH05-1 1/8 | 1-1/8" | 9-1/2 | 1.81 | 1.25 | 4.25 | 1.16 | 2.91 | 2.69 | 5.16 | 7.47 | 0.63 | 5.71 | 1.25 | 0.25 | 0.06 | 7.41 |
| SH05-1 1/4 | 1-1/4" | 12 | 2.03 | 1.38 | 4.69 | 1.29 | 3.25 | 3 | 5.75 | 8.25 | 0.69 | 6.25 | 1.38 | 0.25 | 0.06 | 9.5 |
| SH05-1 3/8 | 1-3/8" | 13-1/2 | 2.25 | 1.5 | 5.25 | 1.42 | 3.63 | 3.31 | 6.38 | 9.16 | 0.75 | 6.83 | 1.5 | 0.25 | 0.13 | 13.53 |
| SH05-1 1/2 | 1-1/2" | 17 | 2.38 | 1.63 | 5.75 | 1.54 | 3.88 | 3.63 | 6.88 | 10 | 0.81 | 7.33 | 1.62 | 0.25 | 0.13 | 17.2 |
| SH05-1 3/4 | 1-3/4" | 25 | 2.88 | 2 | 7 | 1.84 | 5 | 4.19 | 8.86 | 12.34 | 1 | 9.06 | 2.25 | 0.25 | 0.13 | 27.78 |
| SH05-2 | 2" | 35 | 3.25 | 2.25 | 7.75 | 2.08 | 5.75 | 4.81 | 9.97 | 13.68 | 1.22 | 10.35 | 2.4 | 0.25 | 0.13 | 45 |
| SH05-2 1/2 | 2-1/2" | 55 | 4.13 | 2.75 | 10.5 | 2.71 | 7.25 | 5.69 | 12.87 | 17.84 | 1.38 | 13 | 3.13 | 0.25 | 0.25 | 85.75 |
| SH05-3 | 3" | 85 | 5 | 3.25 | 13 | 3 | 7.88 | 6.5 | 14.36 | 21.5 | 1.45 | 14.57 | 3.62 | —— | —— | 104.7 |
